The red wire in the tri-color servo lead is shorter than the RX to facilitate its removal from the plug. If you don’t clip the wire, carefully remove it and tape it back up so you may still use it if necessary. If your RX does not have BEC capability (since it is ancient) you need to add a touch of ballast.
You may increase the speed of your RC boat by improving its batteries, propellers, and motor. You may also increase the speed of your RC boat by removing the shiny finish on the bottom. When improving your boat, try to keep the system cold so that the boat performs smoothly and swiftly.

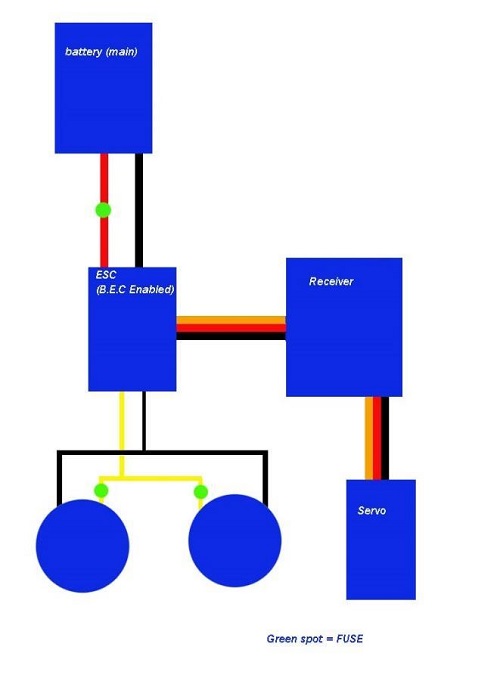

Wiring Diagram of Twin Motor RC Boat
One Electronic Stability Control (ESC) and two dc motors are wired in parallel, each with its own fuse Some folks still have 2 channel AM systems but want to run more than one motor in their boats; this is the easiest way to do it. If one engine fails due to binding and blows the fuse, the other engine should still be able to bring the boat home.
When employing series wiring, where energy runs through one motor and then through the other, there would be only one fuse, and one stalled motor would pop that lone fuse. The following diagram illustrates the wiring diagram of a twin-motor RC boat.
What Are the Three Wires on an RC Motor
Positive, negative, and neutral are the three wires of an RC motor. It operates on the same principle as a three-pole armature, except that in a brushless motor, the armature is stationary. The ESC switches current between the wires, creating the push/pull that causes the magnet on the rotor to spin.
These wires are turned on in a specific order to generate a succession of electromagnetic forces that pull the bell (which includes permanent magnets) around. Because there are three sets of coils, there are three cables – one for each set of coils so that they can be energized individually.
How Do You Wire a Dual Brushless Motor in RC Boat

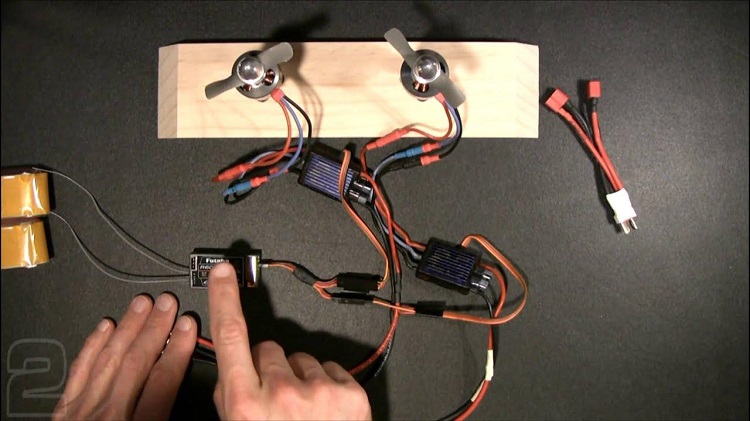

You’ll need two ESCs, which you can connect to the same channel on the receiver with a Y cable or to two distinct channels by configuring mixing in the radio. Also, unplug the red wire from at least one of the ESCs. Perform the following steps to wire a dual brushless motor:
- Connect both electronic speed control to the motors. The manufacturer of the motors and the ESC have to be the same.
- Take the Y-harness of the same gauge and place the radio throttle connection. Now eliminate one of the positive leads from the radio system.
- Connect the supplying BEC power to the Y-adapter.
- Connect the batteries to the receiver. Make the connections as per the following figure.
The three wires increase the pulling power of the brushless motors. Understanding this aids comprehension of stepper motors further down. The brushed dc motor’s two wires can be thought of as forward and backward. Brushless wires are represented by the numbers 1, 2, and 3.
Can One ESC Control Two Motors of RC Boat
It is possible, but it is not advised. First and foremost, you will require an ESC capable of handling twice the current that a single motor uses. The ESC will also recognize the motors as a single unit, so if one of them fails or falls out of sync, both will stop.
Both brushed and brushless motors require ESCs. ESC is different depending on whether the motor is brushed or brushless. In other words, you must purchase the correct type. The most important consideration in selecting the right ESC is acquiring a current rating that is slightly higher than the motor will draw.
Can You Run 2 Brushed Motors off 1 ESC
Yes, you can run 2 brushed motors off 1 ESC. The best results are obtained when both systems are similar, whether brushed or brushless. That is, one throttle is paralleled to both controllers, which are both hooked to a single battery pack with sufficient AH. The motors and wheel sizes should be the same as well.
By combining two motors, you may distribute the weight from front to back, rather than having all of the motor weight in the rear tire, as is typical of hub motor e-bikes. You can also utilize two smaller motors instead of one large motor, which will help to equal out the bike’s weight distribution.
BEC is for Battery Eliminating Circuit, which powers your ESC. It also powers the RX via an in-built step-down regulator circuit. A single propeller is typically employed when the room is limited. The extra weight of an RX pack may cost you a second or two per lap if your boat is carrying a few more ounces than necessary.
