Yes, a notch filter is a type of IIR filter.
“IIR” refers to a digital filter class with feedback, where previous outputs influence the current output. The IIR notch filter is a subtype designed to attenuate or reject specific frequencies while leaving others mostly unchanged.
“Notch” denotes a frequency response curve with a deep, narrow dip at the center frequency. The notch filter attenuates this frequency specifically within the bandwidth of the notch.
Now we will get to know the details in this article.
Basics of Notch Filters and IIR Filters
Notch Filters
A notch filter is a kind of band-stop filter that eliminates a specific frequency range. A band reject filter or band eliminator are other names for it. In order to remove undesired interference from a signal, such as noise from power lines or the hum of a fluorescent lamp, notch filters are frequently utilized.
IIR Filters
A form of digital or analog filter called an IIR filter, or infinite impulse response filter, is used in signal processing and control systems. Its implementation is characterized by feedback, which enables previous output values to affect the current output.
The IIR filter has the property of having an infinite impulse response, which means that the reaction does not eventually zero out but instead lasts indefinitely. When a brief input signal (an impulse) is applied to a filter, its output is referred to as the filter’s impulse response.
The impulse response for an IIR filter is endlessly long, but in actual applications, the response eventually decays and vanishes due to finite precision and other variables.
IIR filters’ feedback structure results in sharper frequency response transitions between passbands and stopbands as compared to FIR filters without feedback. They are the best choice for activities requiring accurate frequency control and real-time signal processing because of this characteristic.

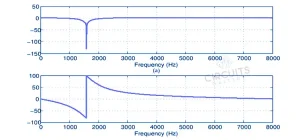

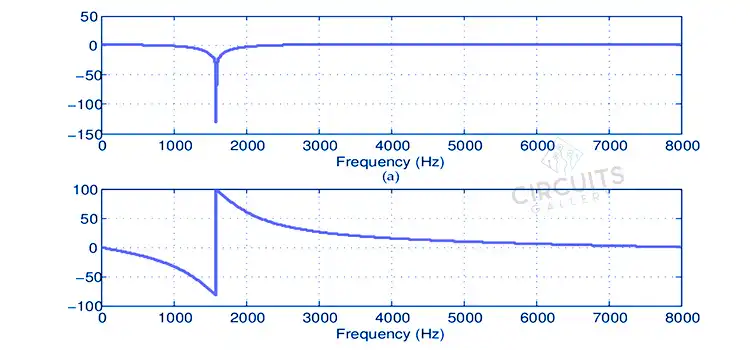

Image 1: IIR Filter
Relationship Between Notch Filter & IIR Filter
An IIR (Infinite Impulse Response) filter and a Notch filter are related in that a Notch filter is a particular kind of IIR filter. In other words, an IIR filter falls under the larger category of Notch filters as a subclass or variety.
An IIR filter lasts forever because it has an endless impulse response. Because of its feedback mechanism, IIR filters provide frequency response transitions between passbands and stopbands that are more pronounced.
On the contrary, a Notch Filter weakens or rejects a particular band of frequencies while permitting others to pass through unmodified, It gets its name from the deep, narrow “notch” in its frequency response that appears at the center frequency.
The connection between the two is made possible by the fact that an IIR filter’s principles are used to create a Notch Filter. Designing a notch filter entails setting up the IIR filter to produce the desired frequency notch.
Engineers can precisely attenuate or eliminate undesired frequencies while mainly preserving the rest of the signal by carefully choosing the center frequency and bandwidth parameters of the IIR filter.
Frequently Asked Questions
What are the potential drawbacks of using IIR filters?
If IIR filters are not built appropriately, stability problems could arise, leading to oscillations and filter instability. They also introduce phase shifts, particularly close to the cutoff frequency, which can lead to distortions.
What are the advantages of using an IIR filter over an FIR filter?
IIR filters require fewer coefficients, making them more computationally efficient for real-time applications. It has a sharper roll-off in the frequency domain, allowing for precise frequency filtering.
Conclusion
IIR filters come in different varieties, but a Notch Filter is one of them. It is excellent at dampening some frequencies while letting others pass through unmodified. The effective use of these filtering techniques in several applications, from audio processing to communication networks, is made possible.
