The sampling rate for a notch filter must be at least twice the frequency of the notch.

When signal processing, notch filters are crucial tools for removing undesirable frequencies or interference. The sampling rate, or the number of samples obtained per second, is essential for ensuring its efficacy. According to the Nyquist criterion, the sampling rate must be at least twice as frequent as the notch.

The significance of sampling rate in notch filters, its connection to notch frequency, and the repercussions of disobeying the Nyquist criterion are all examined in this article. Engineers and researchers can improve the effectiveness of notch filters for accurate signal processing by comprehending this important element.

## What Is Notch Filter & Sampling Rate?

### Notch Filter

A notch or band-stop electrical filter attenuates or rejects a single frequency or narrow range of frequencies while allowing others to pass. They are often used to filter out interference from signals and unwanted frequencies. This creates an impedance change that effectively attenuates signal power at selected frequencies while allowing other frequencies to pass relatively gently.

Notch Frequency;** f _{N} = 1 / (4πRC)**

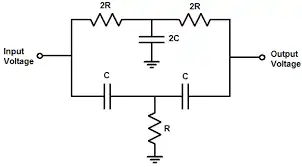

**Image 1: Notch Filter**

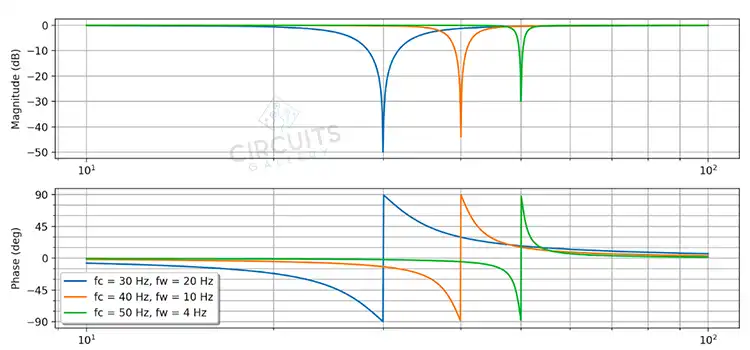

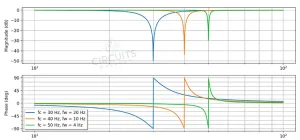

**Image 2: Frequency Response of Notch Filter**

### Sampling Rate

The sampling rate is the frequency at which an analog signal is converted into a digital signal by taking discrete samples. The choice of the number of samples taken per unit of time determines the preciseness and integrity of the digital signal. Lower sample rates can introduce errors and information loss, while higher sample rates provide a more accurate representation of the original signal.

## How to Choose the Right Sampling Rate for a Notch Filter?

To determine the sampling rate for a notch filter, the following steps can be followed:

### 1. Identify the Highest Frequency Component

Select the highest frequency component of interest or the frequency of the signal of interest as the maximum frequency that the notch filter should capture accurately.

### 2. Apply the Nyquist-Shannon Sampling Theorem

To avoid aliasing, make sure the sample rate is at least twice the highest component of interest. The minimum required sampling rate can be calculated by multiplying the highest frequency by 2.

**Minimum Sampling Rate = 2 × Highest Frequency Component**

### 3. Consider Signal Bandwidth and Filter Characteristics

Consider the total bandwidth of the signal and the characteristics of the notch filter. If the signal or filter bandwidth is narrow, a higher sample rate may be required to record important features accurately.

### 4. Account for System Constraints

Be aware of hardware or computing resource limitations. Ensure that the selected sampling rate can be effectively supported by the system without compromising performance.

### 5. Validate and Optimize

Use the chosen sampling rate and notch filter in an actual application. Analyze how well the filter suppresses unwanted frequencies and how accurately it reproduces the desired signal. Repeat this process as necessary to change the sample rate to get the desired result.

## What Is the Importance of Sampling Rate in Notch Filtering?

The sampling rate is an important factor in notch filters. The following main argument supports the importance of sample rate in notch filtering.

### 1. Accurate Frequency Representation

The sample rate determines the number of times the analog signal is sampled and converted to discrete data values. A higher sampling rate can more accurately capture the frequency content of interest and the target notch frequency, resulting in a more accurate representation of the frequency content of the signal.

### 2. Avoiding Aliasing

The sampling rate does a good job of preventing aliasing, i.e. distortion of high-frequency components and misinterpretation as low frequencies.

### 3. Preserve Signal Details

Notch filters retain the desired signal while removing unwanted frequencies and interference. A sufficiently high sampling rate ensures that the target frequency or frequency range is accurately identified and attenuated by the notch filter to produce the desired output.

## Frequently Asked Questions and Answers – FAQs

### What are the practical issues to consider when choosing the notch filter sampling rate?

When choosing the notch filter sample rate, it is important to consider the requirements of the input signal, the required notch width, and the available processing resources.

### What is the function of the 60 Hz notch filter?

Certain 60Hz frequencies in the signal are reduced or eliminated using a 60Hz notch filter.

## Conclusion

Choosing the right sample rate for the notch filter is important, to say the least. The notches must be at least twice as common to satisfy the Nyquist criterion. A higher sample rate increases computational power but also increases accuracy. To enhance filter effectiveness and frequency roll-off, the optimal sampling rate can be chosen based on signal requirements and available resources.
