What Are The 3 Wires On A Microwave Transformer [Answered]

Microwaves have become an indispensable part of our daily lives, serving up quick and convenient meals with the touch of a button. One such crucial component in a microwave is the transformer, and within it, we find three wires that play a pivotal role.

In this article, we will delve into the intricacies of microwave transformers and decode the mystery of those three wires.

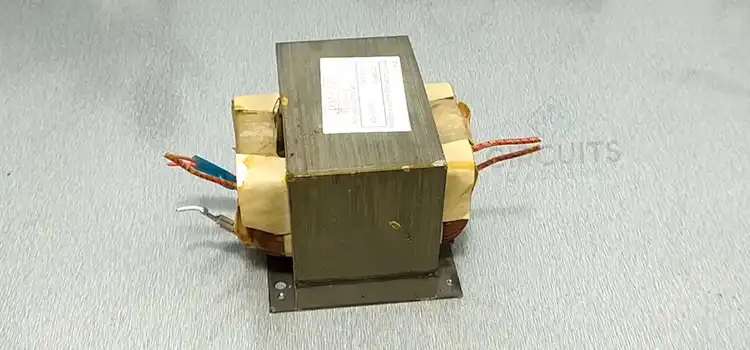

Microwave Transformer: A Vital Component

A microwave transformer is an essential component in a microwave oven that plays a crucial role in converting standard household voltage into the high voltage required for cooking food.

Unveiling the Transformer’s Role

Microwaves rely on transformers to convert the standard household voltage into the high voltage required to cook food quickly and uniformly. This is where those three wires come into play.

Three Wires: Primary, Secondary, and Filament

The three wires on a microwave transformer can be classified into three main categories: the primary, secondary, and filament wires. Each of these wires has a specific purpose, and understanding their functions is essential to comprehend how a microwave works.

Primary Wire

The primary wire is responsible for receiving the standard household voltage (usually around 120 volts) and sending it to the transformer. This wire plays a vital role in regulating the power supply to the microwave.

Figure: Primary wire in the transformer.

Secondary Wire

Once the primary wire delivers the 120 volts, the secondary wire comes into action. It is designed to step up the voltage significantly, usually to around 2,000 volts. This high voltage is what powers the magnetron, the component responsible for producing microwave radiation.

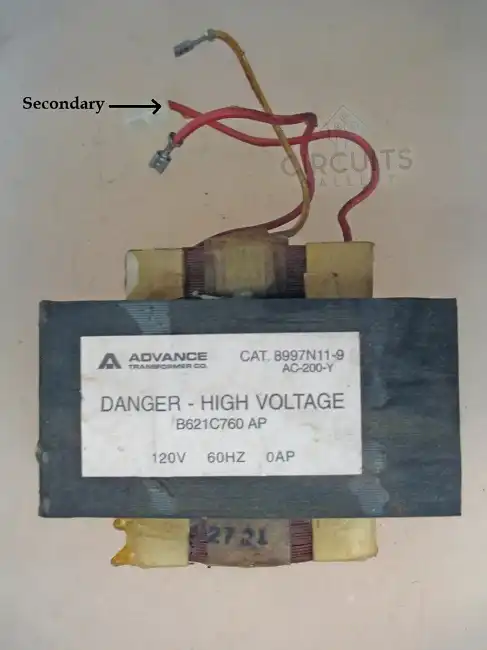

Figure: Secondary wire in the transformer.

Powering the Magnetron

The magnetron is the heart of a microwave, as it generates the microwaves that cook your food. It requires high voltage, and this is where the secondary wire’s role becomes crucial.

Filament Wire

In addition to powering the magnetron, microwaves also have a filament wire. This wire is responsible for heating the cathode inside the magnetron, allowing it to function effectively. Think of it as the catalyst that starts the microwave’s cooking process.

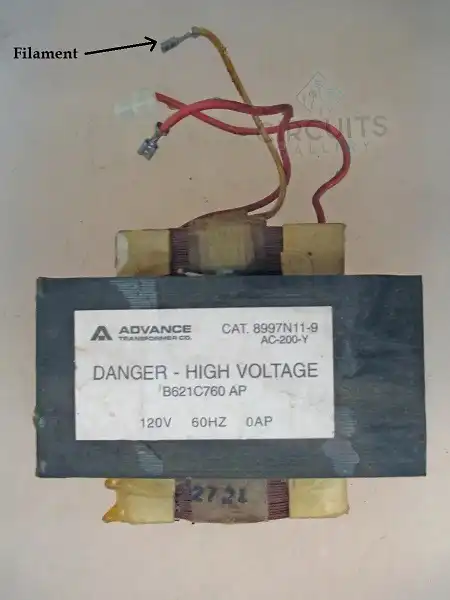

Figure: Filament wire in the transformer.

Frequently Asked Questions

1. Why is it crucial to have high voltage in a microwave?

High voltage is required to generate microwave radiation in the magnetron, which, in turn, cooks your food quickly and evenly.

2. Can the wires on a microwave transformer be upgraded for better performance?

Microwave transformers are designed to operate within specific voltage ranges, and upgrading the wires is not a common or recommended practice.

3. How can I tell if the transformer is faulty?

Common signs of a faulty transformer include unusual noises, sparks, or a complete failure to heat food. If you suspect an issue, it’s best to consult a professional.

Conclusion

The three wires on a microwave transformer, the primary, secondary, and filament wires, are essential components that ensure your microwave heats your food swiftly and evenly. Properly wiring the microwave transformer is a critical step in maintaining the appliance’s safety and functionality.
