Why Is Notch Filter Used for EMG? Explained

August 4, 2023 by Charles Clark Leave a Comment

A notch filter is used in EMG to eliminate power line and harmonic interference that often affects surface electromyography (EMG) measurements.

The method of electromyography (EMG) is effective for analyzing muscle activity. However, precise signal interpretation may be difficult due to unwanted interference. A frequent source of confusion is noise from power lines. To avoid this, notch filters are used in EMG studies.

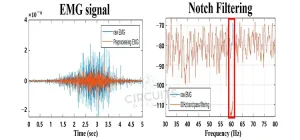

Why Is Notch Filter Used for EMG

What Is Notch Filter?

A notch filter selectively reduces or removes one or more frequencies from a signal while allowing some frequencies to pass. It improves signal quality and reduces unwanted noise and interference in a variety of applications.

A notch filter is used to purposefully reduce or eliminate some frequencies. Harmful interference can be easily removed. The researcher can increase the accuracy and dependability of the data by utilizing a notch filter to record additional information from his EMG.

Introduction to EMG

Electromyography is called EMG. Using this method, the electrical activity generated by skeletal muscle is measured and recorded. To record the electrical signals generated by muscular contraction and relaxation, surface or needle electrodes are placed into the muscle of interest.

An “electromyogram” is a record of electrical activity which is produced by an EMG. For the detection and assessment of several neuromuscular diseases and disorders, it offers crucial information regarding the functionality and mobility of the muscles.

In both research and medicine, EMG is used to evaluate muscle abnormalities and nerve injury, track muscle activity during physical activity and rehabilitation, and offer therapeutic assistance like biofeedback and muscle training. This technique offers important new information about the nature and mechanism of myoelectricity.

Image 1: EMG(Electromyography)

Why Notch Filters Are Essential for Accurate EMG Analysis?

Notch filters are essential for accurate EMG analysis due to the following reasons:

Interference Removal

Electromagnetic interference, power lines, and electrical equipment introduce noise into EMG signals, causing waveform distortion. Notch filters isolate noise from real muscle activity by focusing and rejecting interfering frequencies.

Elimination of Power Line Frequencies

The primary frequency (for instance, 50 Hz or 60 Hz) and its harmonics are the most common type of interference in EMG recordings. Due to the frequent tampering of  EMG data by power line outages, it can be difficult to properly pinpoint muscle activation. Notch filters successfully reduce line noise and improve signal quality by attenuating specific frequencies.

Improvements in Signal-to-Noise Ratio

When capturing EMGs, the notch filter is crucial for reducing power line noise. Successful frequency reduction enhances the signal quality and permits precise detection of muscle activity. The EMG analysis is now more accurate and reliable as a result.

Reliable Diagnosis and Care

In electromyography (EMG), notch filters are crucial for the precise diagnosis and treatment of neuromuscular diseases. In order to produce clear, dependable EMG data that accurately portrays muscle activity, interference is removed using a notch filter. Thus the diagnosis is more accurate, the course of the patient’s treatment is simpler to decide, and it is simpler to track the patient’s improvement.

What Are the Drawbacks of Using Notch Filters in EMG Analysis?

Although there are advantages to using notch filters in EMG analysis, there are also some potential disadvantages.

Signal Distortion

Aggressive interference rejection filters can cause signal distortion. The shape, amplitude, or timing of EMG waveforms can be altered by notch filters, which can affect the accuracy and meaning of the data.

Frequency Drift

Line frequency can affect the performance of notch filters designed to reduce noise in EMG signals at specific frequencies. To optimize filter performance, frequency changes must be carefully considered.

Excessive Filtering

Excessive or improper use can result in excessive notch filtering, removing noise and important muscle movement components. Excessive filtering can impair our ability to detect and understand muscle activity, and important details and information in the EMG signal can be lost.

Frequently Asked Questions and Answers (FAQs)

Can notch filters be used in real-time EMG analysis?

Yes, notch filters can be implemented in real-time EMG analysis systems. When used in real-time, the notch filter parameters are optimized for fast and accurate analysis of muscle activity during live EMG recordings.

Are there any considerations when implementing notch filters in EMG systems?

Yes, when using notch filters in EMG systems, it is crucial to consider aspects such as filter order, filter response, computational efficiency, and potential phase distortion. Optimizing these parameters ensures the performance of the notch filter while minimizing the adverse effects of the EMG signal.

Conclusion

In conclusion, the notch filter is essential for EMG because it removes interference from power lines and allows for precise and dependable recordings of muscle activity. Its success in eliminating noise improves EMG quality and helps the field advance.
