The neutral conductor is a critical component in electrical systems. Neutral wire does carry current as it provides a return path for electric current and a reference point for circuit voltages.
This article will provide a deep dive into neutral conductor principles. We’ll examine why and how current flows through neutrals, guidelines, and the safe handling of neutral wires.
What is a Neutral Conductor in a Circuit?

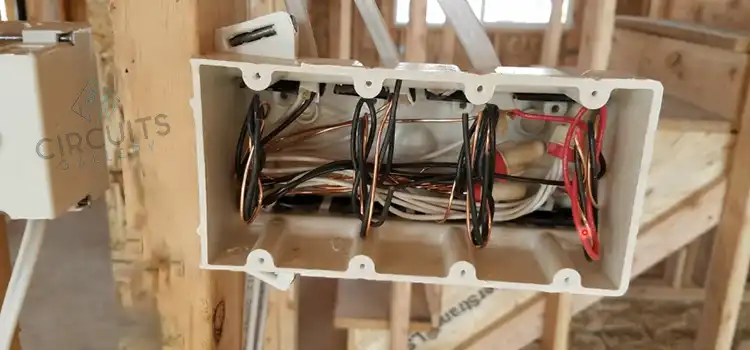

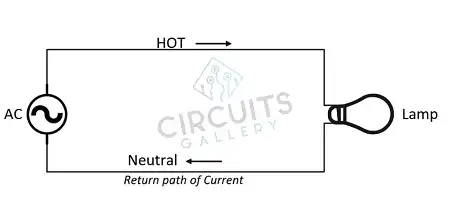

In electrical circuits, conductors carry current from the power source to the connected equipment and back in a continuous loop. The conductor that carries current directly from the source is called the “hot” or “live” wire. The return conductor that completes the circuit back to the source is called the “neutral” wire.

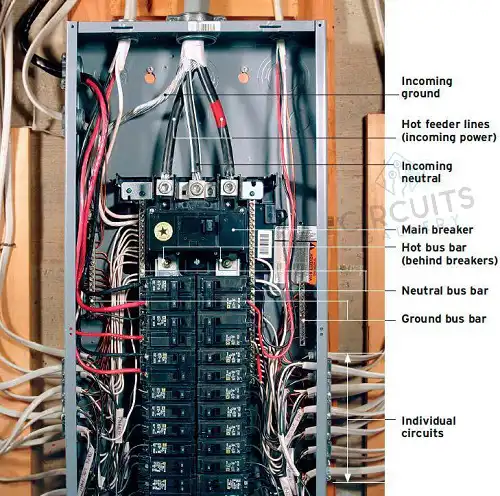

The neutral conductor is typically identified by white or gray insulation. It connects to the neutral bus bar in the main service panel, which, in turn, is bonded to the grounding system. This provides a reference point to maintain consistent voltages in the electrical system.
While the hot conductors actually deliver power to devices, the role of the neutral is equally important in completing the circuit and balancing loads.
Does a Neutral Wire Carry Current?
Under normal operating conditions, the neutral conductor carries the same amount of current as the hot conductor back to the power source. The total current entering a circuit from the hot wire must equal the current returning through the neutral for the circuit to be balanced.
However, there is a common misconception that the neutral carries no current. Let’s look at why the neutral conductor needs to carry current in more detail:
Electricity must flow in a complete loop from source to load for circuits to operate properly. The neutral provides the return path to close the loop and allow sustained current flow.
In building wiring, the most common is a single-phase 120/240V split-phase system. The neutral conductor carries the imbalance between the two 120V hot wires.
If the loads on each hot conductor are equal, the currents cancel out to zero on the neutral return. But for most circuits with varying loads, the neutral will carry current due to differences in the hot conductor loads.
Ground Fault Returns
In the event of a ground fault where electricity takes an unintended path, the neutral conductor provides the lower-impedance return path compared to the grounding conductor. This allows sufficient fault current flow to trip the overcurrent protection device quickly.
Modern electronic loads often do not follow the simple sine waveform of electromechanical devices. This frequently results in different currents on the hot and neutral conductors, meaning the neutral returns a substantial amount of current to the power source.
Dangers of No Neutral Wire
Even though the neutral is grounded, it should always be treated like a current-carrying conductor. Failure to do so can lead to potentially dangerous situations:
- Overloading: An undersized neutral can overheat from carrying excessive current.
- Shocks & Electrocution: If the neutral is loose or detached, it may become energized if there is current flow.
- Fire: Heat buildup from high resistance in an undersized neutral can ignite nearby combustibles.
- Equipment Damage: Excessive neutral voltage drop can damage sensitive electronics.
Neutral Wire Usage Guidelines
Proper guidelines for treating the neutral as a current-carrying conductor include:
- Protect the neutral conductor with the same overcurrent protection as the hot conductors.
- Ensuring the neutral is firmly terminated at all connections.
- Avoid kinks, sharp bends, or damage to the neutral conductor.
- Not relying on the neutral to provide the primary ground fault current return path.
- Performing regular thermal scans and inspections on electrical panels and feeders.
Frequently Asked Questions and Answers (FAQs)
Q. What Color Is the Neutral Wire in Wiring Systems?
Answer: The neutral wire color varies by country. In the UK, it is typically blue; in Australia, it is black. And in the US, it is white.
Q. Can Unused Neutral Wires Be Capped off in a Junction Box?
Answer: Yes, unused neutral wires that are not terminated on a device can be capped off with a wire nut in a junction box.
Q. Can the Neutral Conductor Be Smaller Than the Hot Conductors?
Answer: No, the neutral should always be equal to or larger than the hot conductors.
In electrical systems, the neutral conductor is as important as the hot conductor to ensure safe and efficient current flow. No electrical system can function safely and effectively without a properly installed neutral Wire.
Understanding its importance is essential for designers, installers, inspectors, and anyone working with electrical systems.
