In a 15-amp circuit, a 12-gauge wire is OK. In fact, for 15-amp circuits in home electrical wiring, employing 12-gauge wire is the norm. The 12-gauge wire is more than capable of supporting the 15-amp load because it is rated to safely carry up to 20 amps.
A safety margin is created by using 12 gauge wire on a 15 amp circuit since the wire may carry more current than the circuit is designed to support. This lessens the possibility of wire damage or fire threats and prevents overheating.

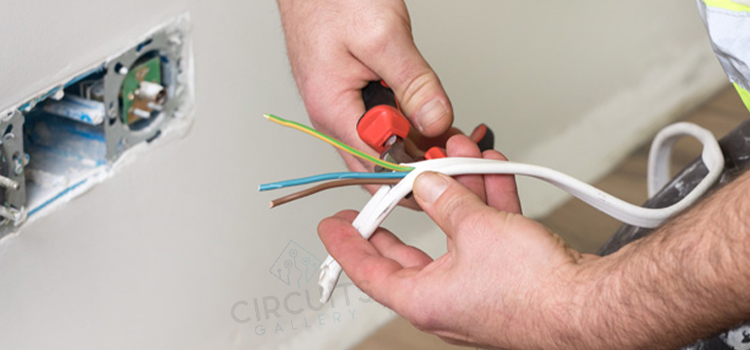

Is 12 Gauge Wire Appropriate for 15 Amp Circuit
It is normal practice and regarded as standard for household electrical wiring to use 12 gauge wire on a 15 amp circuit. It guarantees optimum electrical safety and offers flexibility in case you wish to increase the circuit’s amp rating in the future.
The National Electrical Code (NEC) establishes the ampacity ratings for various wire sizes for use in common residential wiring applications in the United States. Here’s a table of wire gauges and their respective ampacity ratings according to the NEC.
| Wire Gauge Size | Ampacity Ratings (Maximum) |
| 14 AWG | 15 amps |
| 12 AWG | 20 amps |
| 10 AWG | 30 amps |
| 8 AWG | 40 amps |
Higher Ampacity
The circuit is rated for 15 amps, however, 12 gauge wire has an ampacity of about 20 amps. This indicates that the wire can safely carry the current load without getting too hot.
Electrical Safety
Wire size correctly is essential for electrical safety. By using 12 gauge wire, you can be sure that it can carry the electricity without experiencing too much resistance or heating up. Also, use of a wire with a higher ampacity than the circuit rating offers a safety margin and lowers the danger of wire damage or fire hazards.
Future Flexibility
Using 12 gauge wire enables flexibility in the future. The current 12 gauge wire can already handle the increased current load if you wish to upgrade the circuit to a higher amp rating in the future.
Code Compliance
The National Electrical Code (NEC) permits the use of 12 gauge wire in addition to the 14 gauge wire that is recommended for 15 amp circuits. To ensure compliance, though, always check your local laws and regulations regarding electricity.
Is Upgrading to a Larger Wire Size Required for a 15 Amp Circuit?
For a 15 amp circuit, upgrading to a greater wire size is not required. Using 12 gauge wire is enough and satisfies the performance and safety standards.
Conclusion
It is acceptable and generally used to utilize a 12 gauge wire on a 15 amp circuit. The usage of 12 gauge wire, which has a higher ampacity than the circuit rating and offers a safety margin, is permitted by the National Electrical Code (NEC). To ensure compliance with local legislation and for specialized applications, it is crucial to abide by electrical codes and regulations.
