A buffer amplifier with unity gain provides a high input impedance and a low output resistance.
With its input connected to the output of the first circuit and its output linked to the input of the second, the buffer may be used to isolate two stages. Now we will witness the effectiveness and uses of unity gain buffer in this article.
What Is a Unity Gain Buffer?

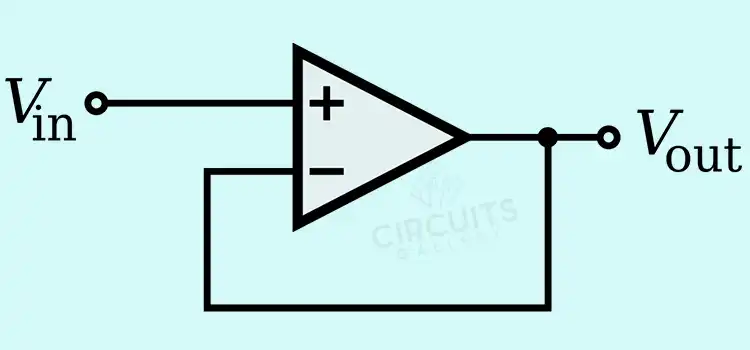

A setup of the operational amplifier that results in the output equal to the voltage provided to the non-inverting input is known as unity gain, also known as a voltage-follower or buffer. High-impedance sources, such as resistor dividers, are frequently buffered with unity gain.
Why Is It Useful
Unity gain buffer is useful for the following reasons:
Impedance Matching
As the unity gain buffer provides high impedance, it matches with the source impedance. And on the other hand, low output impedance matches the load impedance. This feature ensures efficient signal transfer.
Isolation of Signals
Unity gain buffer isolates the input and output of a circuit. It takes very little current from the source which helps to prevent the loading effect.
Stability
In many cases, a circuit requires buffering to maintain its stability. Unity gain buffer can provide this feature by isolating input and output.
Signal Amplification
Unity gain buffer prevents the degradation of signals. It amplifies the weak signals to ensure sufficient strength for a signal.
What Is Current Buffer Unity Gain?
In simple words, it is just a current buffer that provides the same current at the output as the amount of current in the input. It makes sure that the current at the input is not affected by the load at the output.
What Is Ideal Unity Gain Voltage Buffer?
Ideal unity voltage gain is one which has a voltage gain of exactly 1 And also ideal unity gain voltage buffer has some characteristics:
- It has a high input impedance
- It does not introduce any phase shift
- Output impedance of a voltage buffer is low
- An ideal voltage buffer’s bandwidth extends the entire frequency range.
How Does a Unity-Gain Op Amp Work?
The key concept of working of unity gain buffer is a virtual short circuit at the input terminal. Due to the high input impedance at the input terminal, it takes a negligible current.
Thus, the inverting input voltage and output inverting voltage is equal. It also follows the voltage follower characteristics. The output voltage exactly follows the input voltage.
Frequently Asked Questions and Answers – FAQs
What Is Another Name for a Unity Gain Buffer?
The other name for a unity gain amplifier is voltage follower.
Does a Buffer Circuit Have a High Gain?
A voltage buffer amplifier may have a voltage gain of (about) unity, but it often has a high current gain and consequently power gain. However, when referring to the voltage gain, it is usual to indicate that it has a gain of 1 (or the equivalent of 0 dB).
Conclusion
A unity gain buffer is a useful and versatile component in the world of electronics. Its unity gain, higher input, and lower output impedance characteristics provide greater flexibility for the users. It is also useful for accurate signal representation for its feature of preventing the loading effect. As the world of technology is advancing day by day, the simplicity and flexibility of unity gain buffer are playing a vital role in this sector.
