Leviton dimmer switch is powered by the two black wires connected to the black wire leading to the switch. The switched-hot wire to the light is the blue wire from the switch attached to the other black wire. The green wire serves as the ground.
Leviton Manufacturing Company, Inc. is an American manufacturer of electrical wiring equipment in North America. LED dimmers manufactured by this company include an adjustment switch that allows you to change the minimum light level as needed for consistent performance.
Leviton Dimmer Switch Wiring Diagram
Leviton dimmer switches are often on the list of the greatest quick home renovations for a reason: the inexpensive, quick installation may help cut your electricity cost while also instantly elevating the mood of your area, day and night. They’re also good for the environment.

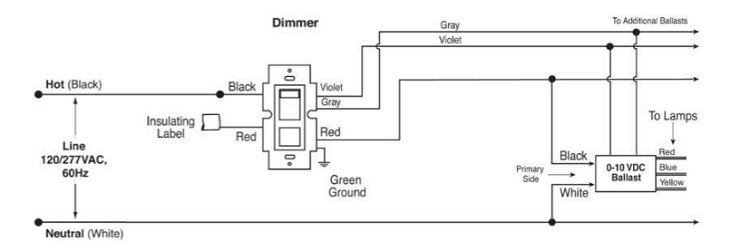

The following figure illustrates the wiring diagram of the Leviton dimmer switch.
How Do You Wire a Leviton Dimmer Switch
While we recommend employing an electrician whenever possible, if you’re handy, Leviton dimmer switches are one of the easiest swaps you can do yourself. Just make sure to switch off the power at your main fuse box before following the instructions below.
Removing the Old Switch
Step-1: Turn off the power at your fuse box before touching the original light switch. After that, check sure the power is turned off by testing the light switch.
Step-2: If you’re reusing the switch plate, unscrew it and store it. Most dimmers include a plate to accommodate the larger dimensions, although some are designed to suit standard plates. Check the measurements of your new dimmer package to ensure it will fit.
Step-3: Remove the rubber coating from the wires by opening the dimmer switch. Allow at least 1 to 2 inches of copper wire to be exposed to guarantee a tight seal with the wall wires.
Step-4: Remove the old switch from the wall, taking care not to sever the wires from the rubber section. To triple-check voltage levels, use a voltmeter to test the cables.
Installing the New Switch
Step-1: Push the wires into the box, taking care not to disrupt the connections and leave room for the dimmer box.
Step-2: Install the new box on the wall. Finish with the provided light plate or screw tight the old light plate. Check that the switch is clean of debris and turn on the power at the main fuse box.
Step-3: Turn the new Leviton dimmer switch on and off, dimming as you go. Examine the outlets and remaining light switches in the room to ensure that no outlet connections were harmed during the operation.
Step-4: Check the on/off switches at both light switches when using 3-way switches.
Does Leviton Dimmer Need Neutral?
Leviton, a lighting control company, has released two smart switches that do not require a neutral cable. Both the Decora Smart No-Neutral Dimmer ($49.99) and Switch ($44.99) are compatible with the Decora Smart Wi-Fi Bridge ($19.99).
To function, most smart light switches require a neutral wire. Many residences have limited alternatives for updating to smart switches because this wiring was not standard in homes until the mid-1980s.
Where Does the Red Wire Go on a 3-Way Dimmer Switch?
The black wire on the dimmer should be connected to the power, the red wire should be attached to the light. The striped red wire should simply be capped, and the ground wire should be linked to the ground. Both switches’ traveler terminals are connected via red and blue wires.
The red wire connects to the common terminal of the first switch and returns to the fixture. The following figure shows the position of the red wire in a 3-way dimmer switch.
Why Do Dimmer Switches Have Two Black Wires
The two black wires in your dimmer switch are called a double pigtail. An electrical pigtail is a technique used to lengthen short wires or combine multiple wires and leave one conductor that can connect to electrical devices such as a switch or outlet.
The dual Recep screws of receptacles can be compared with the pigtail of your dimmer switch. They are doing the same thing. Because switches and bulbs do not have dual screws, pigtails are frequently used to achieve the same effect.
Conclusion
The connection that completes the circuit to the light can be made or broken using a pair of 3-way Leviton dimmer switches. If no drywall removal or repair is required, the entire wiring and a light switch endeavor can be finished in a few hours. The plug-in bridge is used by the new Leviton dimmer and switch.
