How to Strip Ribbon Cable | 3 Ways and Tips
Ribbon cables, with their flat, multi-wire structure, are commonly used in electronic devices and computer systems to transmit data and signals between components.
Stripping these cables correctly is crucial when working on electrical projects or repairs. It involves a lot of processes and can be done using a utility knife or wire strippers. Here’s a handy guide on how to effectively strip ribbon cables without damaging the wires.
Strip Ribbon Cable | A Simple Guide
You can strip ribbon cables using a utility knife by measuring, scoring, and peeling off insulation, or with wire strippers by selecting the right size, adjusting stripping length, and removing insulation without damaging wires. Here we go:
Tools and Materials Needed
Before you begin, gather the following tools and materials:
- Ribbon Cable Cutter or Stripping Tool: A specialized tool designed for ribbon cables helps to precisely cut and strip the insulation without damaging the wires.
- Sharp Knife or Scissors: In the absence of a specialized tool, a sharp knife or scissors with a steady hand can be used, but caution must be exercised to avoid cutting into the wires.
- Wire Strippers: For removing insulation from individual wires if needed.
Stripping Ribbon Cable with a Utility Knife
This comprehensive portion explains how to use a utility knife to successfully strip ribbon wires.
- Measure and Mark: Determine the length of cable you need to strip. Mark the cable with a sharpie or pen where you want to start stripping.
- Score the Insulation: Carefully score the insulation along the entire length of the cable, using a sharp utility knife or razor blade. Apply even pressure and avoid cutting too deep to prevent damaging the copper wires.
- Peel off the Insulation: Once the insulation is scored, you should be able to gently peel it off the individual conductors. Use your fingers or pliers to carefully remove the insulation strip.
- Trim the Ends: If necessary, trim the ends of the individual conductors to ensure a clean and even finish.

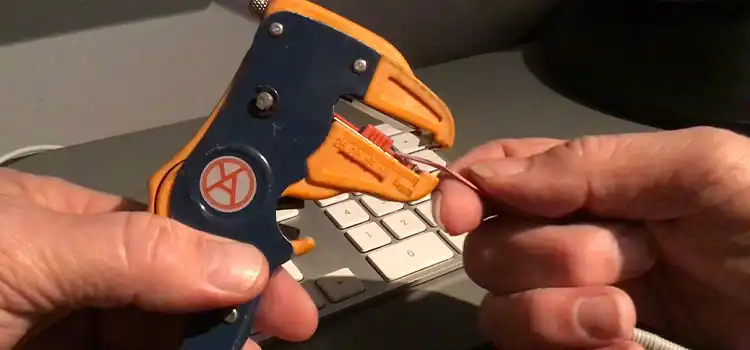

Stripping Ribbon Cable with Wire Strippers
This comprehensive portion explains how to use wire strippers to successfully strip ribbon wires.
- Match the Size: Choose wire strippers that are compatible with the size of your ribbon cable. Check the wire stripper’s markings or specifications to ensure it can handle the conductor gauge of your cable.
- Set the Stripping Length: Adjust the wire strippers to the desired stripping length. This will determine how much insulation is removed from each conductor.
- Insert the Cable: Insert the ribbon cable into the wire strippers, ensuring that all conductors are aligned properly.
- Strip the Insulation: Squeeze the wire strippers’ handles to strip the insulation from the conductors. The strippers should automatically remove the correct amount of insulation without damaging the wires.
- Remove the Cable: Carefully remove the cable from the wire strippers.
Stripping Individual Conductors
If you need to strip individual conductors from a ribbon cable, you can use wire strippers or flush cutters.
- Position the Conductor: Place the individual conductor you want to strip in the wire strippers or between the jaws of the flush cutters.
- Strip or Cut: For wire strippers, squeeze the handles to remove the insulation. For flush cutters, carefully cut the insulation without damaging the copper wire.
- Repeat for Remaining Conductors: Repeat the process for each conductor you need to strip.
Additional Tips
Protect your eyes from flying debris while stripping the cable. Use a cutting board or mat: Protect your work surface from scratches and damage. Handle the cable with care: Avoid excessive bending or twisting the cable to prevent damaging the conductors. Inspect the stripped wires: Ensure the copper wires are clean and free of nicks or scratches before making connections.
Frequently Asked Questions
Is it possible to strip ribbon cables without specialized tools?
While specialized tools like precision stripping pliers are recommended, it is possible to strip ribbon cables using a sharp utility knife and wire cutters. However, caution must be exercised to avoid damaging the internal wires.
Can I reuse a stripped ribbon cable?
It is generally not recommended to reuse a stripped ribbon cable as the process of stripping can weaken the internal wires and compromise the overall integrity of the cable. It is advisable to use a new cable for optimal performance and reliability.
What should I do if I accidentally cut too deep while stripping a ribbon cable?
If you accidentally cut too deep while stripping a ribbon cable, it is best to cut a new section of the cable and start the stripping process again. Cutting too deep can damage the internal wires and result in unreliable connections or circuit failure.
To Conclude
Mastering the art of stripping ribbon cables is a valuable skill in electronics and electrical work. Whether using specialized tools or improvising with common instruments, the key lies in careful handling and precision to ensure the integrity of the wires remains intact. With practice and attention to detail, you can confidently strip ribbon cables for your various electrical projects, repairs, or customizations.
