You can calculate amps in a circuit by using the ohm’s law. One ampere of current corresponds to one coulomb of charge traveling through a spot in a wire in one second.
Electrons flow as a result of potential differences. The current is also known as the charge change rate with time. The symbol for current is I, and the SI unit of current is ampere, which is sometimes called ‘Amps’.
How to Calculate Amps in a Circuit
Ohm’s law states that the current is equal to the potential difference divided by the resistance. As a result, the current formula is V = IR. Here, I denotes current in Amperes, V denotes the potential difference in volts, and R denotes resistance in Ohm(Ω).
Calculating amps in a circuit can be divided into two parts. Because there are two kinds of circuits. One is called a series circuit and the other one is called parallel. As a result, determine the circuit’s nature before calculating the current.

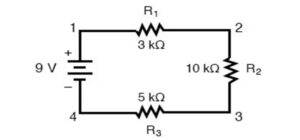

Calculate Amps in a Series Circuit
In a series circuit, the voltage drop should be equal to the voltage of the battery. The equation I = V/R, often known as Ohm’s Law, applies to each resistor in the circuit. Take R as the total of all of the resistors in the series. The voltage of the batteries lasts longer in series.
Calculate Amps in a Parallel Circuit
In a parallel circuit, the resistors are arranged so that they all receive the same amount of current. Here ohm’s law can be used as well to compute current and resistance.
R-total Method
Using the equation 1/Rtotal = 1/R1 + 1/R2 + 1/R3 +… + 1/Rn, calculate the total resistance of the parallel circuit. According to this equation, summing the inverses of all individual resistors generates the inverse of total resistance. Assume you have two four-ohm resistors connected in parallel. Rtotal is equal to 2 ohms.
Determine the system voltage. If you’re using two power sources in series, add the voltages together. To get the ultimate value of current after passing through the parallel resistors, divide the voltage by Rtotal. Ohm’s law, which can be expressed as I = V/Rtotal, is applicable here.
Additive Currents Method
Determine the system voltage based on the power source used. This information will be provided or can be found on the power source itself, such as a battery label. If more than one power source is being used, add the voltages together.
I1 is obtained by dividing the voltage by R1. I1 = V/R1. The value of I1 will be measured in amps. I2 is obtained by dividing the voltage by R2. Repeat this procedure for all resistors. Now add all of the currents. Here, this sum is the total current of the circuit.
Measure Amps with Ammeter
The most common method for measuring current in a circuit is to open the circuit and connect an ammeter in series (in-line) with the circuit such that any electrons going through the circuit must also pass through the meter.
Because measuring current in this method necessitates incorporating the meter into the circuit, it is a more complex type of measurement to perform than either voltage or resistance. When measuring current, some digital meters have a separate jack where the red test lead plug can be inserted.
Ohm’s Power Law
When current flows through a resistor, it dissipates power. Heat is produced as a result of the discharge of energy. The power is proportional to the current I and the voltage applied.
I=P/V
Here, P is the power measured in watts (W). The power law, when combined with Ohm’s law, can be rewritten as,
I=√(P/R)
Graphical Representation of Calculating Amps in a Circuit

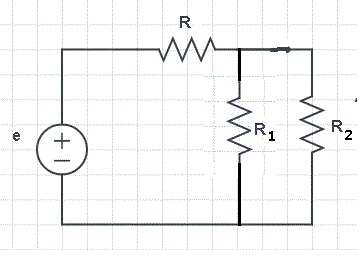

Here R is connected in series with the e and other components. On the other hand, R1 and R2 are connected in parallel. Now, you should take an equivalent of R1 and R2, which can be 1/Rtotal = 1/R1 + 1/R2. Then you can consider Rtotal as a separate resistance that is connected in series.
Then you have to follow the rule of the series circuit. Calculate I by dividing e by total resistance. Here total resistance will be R+Rtotal. In series, the amount of current remains the same, and voltage drops at each resistance. On the other hand, in parallel circuits, the current divides itself and voltage remains the same.
Frequently Asked Questions
How many amps is a wall outlet?
The majority of outlets in your home are rated for 15 amps and are connected to a 15-amp fuse along with a few other 15-amp outlets and switches from the same room.
Conclusion
A series circuit has the same amount of current flowing through all of its components. So, if you are calculating amps for a component in a series circuit, you do not have to measure the current for other components.
