[Answered & Explained] Does Current Flow Through A Capacitors?
Technically, yes. Depends on what you mean by ‘current’. This is because capacitors have an insulating layer between the two plates that prevents electrons from flowing directly from one plate to the other. However, when an AC voltage is applied to a capacitor, the electric field between the plates causes the electrons to oscillate back and forth. This oscillation of electrons is what constitutes AC current.
The pivotal question at hand is whether current traverses through a capacitor—an inquiry that delves into the core principles of electrical engineering.
What Does Mean Capacitors?
Capacitors, electronic components designed to store and release electrical energy, manifest in diverse forms, including electrolytic and ceramic capacitors. Capacitance, quantified in farads (F), signifies their ability to store charge.
How Capacitors Work
The charging and discharging dynamics of capacitors are delineated by the following equations:
Where:
Q is the charge stored in the capacitor,
C is the capacitance,
V is the voltage across the capacitor,
I is the current flowing through the capacitor, and
dVdt represents the rate of change of voltage with respect to time.
These equations elucidate the interrelation of voltage, current, and capacitance in the charging and discharging process.
Capacitors In Different Circuits
Capacitors wield substantial influence in electronic circuits, featuring prominently in applications like filtering, coupling, and energy storage. These applications underscore their indispensability in modern electronic systems.
Capacitors Behaviour In AC and DC Circuits
The behaviour of capacitors diverges in alternating current (AC) and direct current (DC) circuits. The impedance(Zc) of a capacitor in an AC circuit is given by:
Zc=1jC
Where:
Zc is the impedance of the capacitor,
j is the imaginary unit,
ω is the angular frequency, and
C is the capacitance.
In DC circuits, capacitors block the steady flow of current after charging.

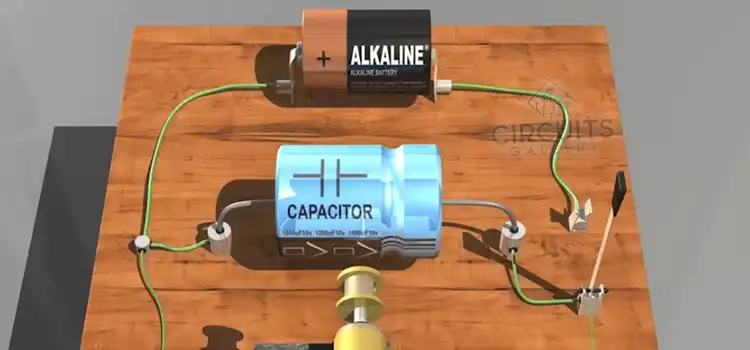

Figure: AC and DC capacitor current flow.
Benefits and Limitations of Capacitors
Capacitors confer advantages in electronic design, offering energy storage, filtering, and coupling capabilities. Nevertheless, they exhibit limitations, including susceptibility to voltage spikes and degradation over time.
FAQs
Can capacitors store negative charges?
Yes, capacitors can store both positive and negative charges, contingent on the polarity of the applied voltage.
How does capacitor degradation occur over time?
Electrolytic capacitors, in particular, may degrade due to factors such as temperature, voltage stress, and aging of the electrolyte.
How does the type of dielectric material impact capacitor performance?
The dielectric material influences capacitance, voltage rating, and temperature stability, with different materials exhibiting distinct characteristics.
Conclusion
In conclusion, capacitors, governed by intricate electrodynamic principles, do not permit a conventional flow of current. Navigating the nuances of their behavior is pivotal for a nuanced comprehension of their role in electronic systems.
