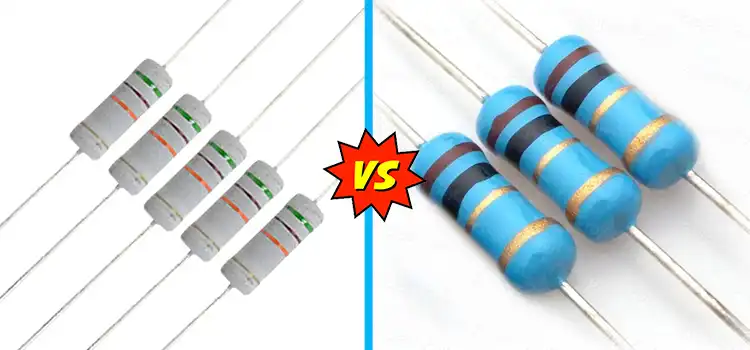

Metal Oxide Resistor vs Metal Film | Comparison
Resistors, fundamental in controlling the flow of current in a circuit, come in various types, each with its unique properties. Among these, Metal Oxide and Metal Film resistors stand out as popular choices, each offering distinct advantages and applications.
In this exploration, we delve into the comparison between Metal Oxide Resistors and Metal Film Resistors, shedding light on their respective features, applications, and considerations for optimal integration in electronic circuits.
Metal Oxide Resistors
Metal Oxide Resistors, often referred to as MO resistors, are constructed by depositing a resistive layer of metal oxide on a ceramic rod. These resistors are known for their robustness and high power handling capabilities.
The metal oxide layer provides stability and reliability even in harsh environmental conditions, making it suitable for industrial and high-power applications.
Image 1- Metal Oxide Resistor
Advantages of Metal Oxide Resistors
Metal Oxide Resistors offer several advantages that make them suitable for various applications in electronic circuit design. Here are some of the key advantages:
High Power Dissipation
MO resistors can manage high power loads, making them suitable for circuits that require substantial power handling capacity.
Stability
They offer excellent long-term stability and low noise, ensuring consistent performance over time.
Reliability
Resistant to temperature variations and moisture, these resistors are highly reliable even in demanding environments.
Fast Response
Metal oxide resistors have a rapid response to changes in current and voltage, making them useful in dynamic circuits.
However, Metal Oxide Resistors do have some limitations:
Limitations
Tolerance
They typically have a lower precision compared to some other types of resistors like Metal Film. Their tolerance might be in the range of 5% to 10%, which can be a consideration for precision applications.
Size
In some cases, they might be larger in size compared to other resistor types, which could be a factor in space-constrained designs.
Metal Film Resistors
Metal Film Resistors, as the name suggests, are manufactured by depositing a thin film of metal (usually nickel-chrome or similar alloy) onto a ceramic base. These resistors are known for their high precision and low noise characteristics, making them suitable for applications where accuracy is crucial.
Image 2- Metal Film Resistor
Advantages of Metal Film Resistors
Here are some of the key advantages of metal film resistors:
High Precision
Metal Film resistors offer high precision in resistance values, often with tolerances as low as 1% or even less.
Low Noise
They exhibit low noise characteristics, making them suitable for circuits where minimizing signal interference is vital, such as in audio applications.
Compact Size
Metal Film Resistors are often smaller in size compared to Metal Oxide Resistors, making them suitable for applications where space is a concern.
However, Metal Film Resistors also come with their limitations:
Limitations
Power Handling
They might not handle as high power loads as Metal Oxide Resistors, making them less suitable for high-power applications.
Cost
Metal Film Resistors tend to be more expensive compared to Metal Oxide Resistors, especially in higher precision variants.
Comparative Study: Metal Oxide vs. Metal Film
A comparative study between Metal Oxide and Metal Film resistors unveils distinct characteristics that influence their suitability for various electronic applications.
Construction and Composition
– Metal Oxide Resistors: These resistors consist of a metal oxide layer deposited on a ceramic rod. Their construction provides robustness and resilience against harsh environmental conditions.
– Metal Film Resistors: Constructed by depositing a thin film of metal onto a ceramic base, metal film resistors offer precise resistance values and compact sizes, ideal for applications where space is limited.
Performance Metrics
– Metal Oxide Resistors: Known for their high power handling capabilities, Metal Oxide Resistors excel in circuits requiring substantial power dissipation. They offer stability and reliability over extended periods, making them suitable for industrial and high-power applications.
– Metal Film Resistors: These resistors boast high precision with low tolerance values (often as low as 1% or less). Their low noise characteristics make them ideal for applications where accuracy and minimal signal interference are critical, such as in audio circuits.
Application Specificity
– Metal Oxide Resistors: Preferable for high-power applications where stability and resilience to environmental stressors are essential.
– Metal Film Resistors: Ideal for precision-oriented circuits where accuracy and low noise levels are crucial, despite their lower power handling capacity.
Decision-Making Factors
– Precision Requirement: High precision demands often steer toward Metal Film Resistors due to their lower tolerance levels.
– Power Handling: Applications with high power loads tend to favor Metal Oxide Resistors for their robustness in managing substantial power dissipation.
Cost Consideration
– Metal Oxide Resistors: Generally, more economical compared to Metal Film Resistors, especially in applications where high precision is not a primary concern.
– Metal Film Resistors: Higher cost, particularly in higher precision variants, making them an investment for applications requiring utmost accuracy.
In essence, the choice between Metal Oxide and Metal Film resistors hinges on the specific requirements of the circuit. Understanding their unique properties and trade-offs empowers engineers to select the most suitable resistor type, ensuring optimal performance and reliability in electronic systems.
Choosing the Right Resistor for Your Application
Selecting between Metal Oxide and Metal Film Resistors largely depends on the specific requirements of your circuit:
– High Power Applications: For circuits dealing with high power, Metal Oxide Resistors are often the preferred choice due to their robustness and power handling capability.
– Precision and Low Noise: In applications where precision and low noise are critical, Metal Film Resistors shine due to their high precision and low interference characteristics.
Frequently Asked Questions
Which resistor type is more space-efficient?
Metal Film Resistors are typically more compact in size compared to Metal Oxide Resistors, making them suitable for space-constrained designs.
Do Metal Film Resistors have a smaller temperature coefficient compared to Metal Oxide Resistors?
Metal Film Resistors typically have a lower temperature coefficient, ensuring stable performance across varying temperatures.
Are Metal Oxide Resistors suitable for precision electronics like instrumentation systems?
While they offer stability, Metal Oxide Resistors might not match the precision levels required in high-end instrumentation systems.
Conclusion
Both Metal Oxide and Metal Film Resistors have their strengths and limitations. Always remember, that the resistor’s role in a circuit is crucial, and selecting the right type contributes significantly to the overall functionality and reliability of your electronic systems.
