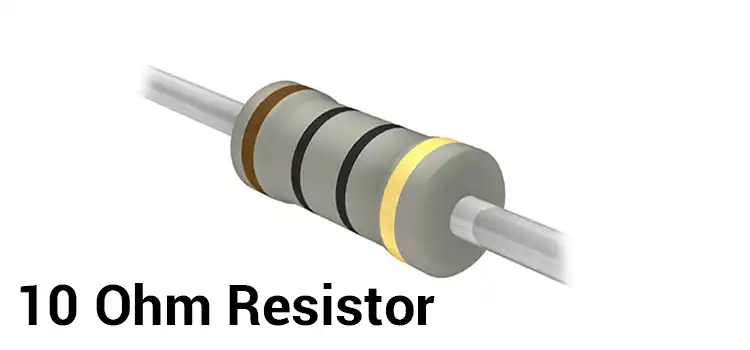

What Is the Current in the 10 Ohm Resistor | Explained
In electrical circuits, resistors play a crucial role in regulating the flow of current. Ohm’s law, a fundamental principle in electrical circuits, establishes the relationship between voltage, current, and resistance.
Understanding this relationship is essential for determining the current flowing through a resistor, particularly a 10-ohm resistor.
Ohm’s Law: The Governing Principle
Ohm’s law, expressed as I = V/R, dictates that the current (I) flowing through a conductor is directly proportional to the voltage (V) applied across it and inversely proportional to the resistance (R) of the conductor.
In simpler terms, the higher the voltage, the greater the current, and the higher the resistance, the lower the current.
Figure 1: Ohm’s Law Triangle
Applying Ohm’s Law to a 10-Ohm Resistor
To determine the current in a 10-ohm resistor, we need to know the voltage applied across it. For instance, if a voltage of 5 volts is applied across a 10-ohm resistor, we can calculate the current using Ohm’s law:
I = V/R = 5 volts / 10 ohms = 0.5 amperes (A)
Therefore, when a 5-volt potential difference is applied across a 10-ohm resistor, the current flowing through the resistor is 0.5 amperes.
Factors Affecting Current in a 10-Ohm Resistor
The current flowing through a 10-ohm resistor is primarily determined by the voltage applied across it, as described by Ohm’s law. However, other factors can also influence the current. These include:
- Temperature: The resistance of a resistor can change with temperature. As temperature increases, resistance generally increases, leading to a decrease in current.
- Material: The material used to make the resistor can affect its resistance. Different materials have different resistivity values, which influence the resistance of the resistor.
- Construction: The construction of the resistor, such as its size and shape, can also influence its resistance and, consequently, the current flowing through it.
Real-World Applications of 10-Ohm Resistors
10-ohm resistors are commonly used in various electronic circuits, including:
- Current-limiting resistors: To protect sensitive components from excessive current.
- Voltage-dropping resistors: To reduce voltage levels to desired values.
Figure 2: Voltage Dropping Resistor
- Pull-up resistors: To ensure a high logic level in digital circuits.
Figure 3: Pull Up Resistor
- Feedback resistors: In amplifier circuits to control gain and stability.
Figure 4: Feedback Resistor
- Biasing resistors: To establish proper operating points for transistors.
Figure 5: Biasing Resistor
Frequently Asked Questions
How Do I Calculate the Current in a 10 Ohm Resistor?
The current in a resistor can be calculated using Ohm’s Law, which states that current (I) equals voltage (V) divided by resistance (R). So, I = V/R. In this case, you would need to know the voltage across the 10-ohm resistor.
If the Voltage is Not Given, Can I Still Determine the Current in the 10 Ohm Resistor?
Without knowing the voltage across the resistor, you cannot determine the current. Both voltage and resistance are necessary to calculate current using Ohm’s Law.
Is the Current the Same Throughout the Entire 10 Ohm Resistor?
In a simple series circuit with only a resistor, the current is the same throughout. This is a fundamental principle of series circuits.
Can I Use Ohm’s Law to Find the Current if I Know the Power Rating of the 10 Ohm Resistor?
Yes, if you know the power (P) and resistance (R) of the resistor, you can use the formula P = I²R to find the current. Rearranging the formula gives you I = √(P/R).
Conclusion
Understanding Ohm’s law and its application to 10-ohm resistors is essential for designing and analyzing electrical circuits. By knowing how to calculate the current in a 10-ohm resistor, engineers and hobbyists can effectively utilize these resistors in a wide range of applications.
