Should HPF and LPF Be the Same? Explained With Comparison
The HPF and LPF are distinct filters in audio signal processing. HPF allows higher frequencies and attenuates lower ones, while LPF lets lower frequencies pass and cuts higher ones. HPF reduces low-frequency noise, LPF removes high-frequency noise. Both enhance sound quality and protect speakers in audio systems.
So the answer is no, HPF (High Pass Filter) and LPF (Low Pass Filter) should not be set at the same values. Next sections would elaborate the factors why they shouldn’t be the same.

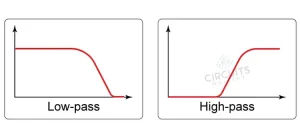

Difference Between HPF and LPF
A straightforward comparison between the HPF and LPF systems is demonstrated in the following.
High Pass Filter (HPF)
A high pass filter weakens low-frequency signals while letting high-frequency signals pass through. It’s designed to emphasize or isolate high-frequency components in a signal, and though it does slightly attenuate high frequencies, this is usually negligible.
Low Pass Filter (LPF)
A low pass filter weakens high-frequency signals while allowing low-frequency signals to pass through. It’s used to emphasize or isolate low-frequency components in a signal, and while it does provide some attenuation to low frequencies, this is typically minor.
Comparison Chart | HPF vs LPF
Parameters | HPF | LPF |
Definition | Allows frequencies above cut off frequency to pass through. | Lower than the cut-off frequency. |
Circuit Architecture | Higher than the cut-off frequency. | Allows frequencies below cut-off frequency to pass through. |
Significance | Significant for removing distortion due to low frequency signals like noise. | Significant for removing aliasing effects. |
Operating Frequency | Higher than the cut off frequency. | Consists of a Capacitor followed by a resistor. |
Applications | Audio amplifiers, low noise amplifiers, etc. | Communications circuits as anti-aliasing filters. |
What Are The Best LPF And HPF Settings?
Optimizing audio output requires finding the ideal HPF (High Pass Filter) and LPF (Low Pass Filter) settings. These parameters control which frequencies are amplified and which are allowed to pass through.
Users can determine the optimum LPF and HPF settings by taking into account variables like the desired sound quality, system capabilities, and the particular audio source. In order to help readers choose the LPF and HPF settings that would produce the optimum audio quality.
Frequently Asked Questions and Answers – FAQs
What happens if I set HPF and LPF at different frequencies?
It is possible to precisely adjust the frequency range by setting the HPF and LPF at different frequencies. You can use this to specify which frequency bands should flow through or be attenuated.
Can I choose different cut-off frequencies in HPF and LPF settings?
You can customize the audio output to have a balanced frequency response in line with your preferences by choosing different cutoff frequencies.
Conclusion
It is not advised to set the HPF and LPF to the same values. In audio signal processing, HPF and LPF serve different functions and objectives. Setting them equal would unintentionally cause both low-frequency and high-frequency material to be lost
