How to Find the First Outlet in the Circuit | Step-by-Step Guide

The first outlet in a circuit is important to find because it is the source of power for all of the other outlets on the circuit. If there is a problem with the first outlet, it can cause all of the other outlets on the circuit to not work.

This comprehensive guide will walk you through the steps to accurately locate that first outlet in a circuit, using various methods, including visual inspection, electrical testing, and circuit tracing tools.

Electrical Circuit Basics

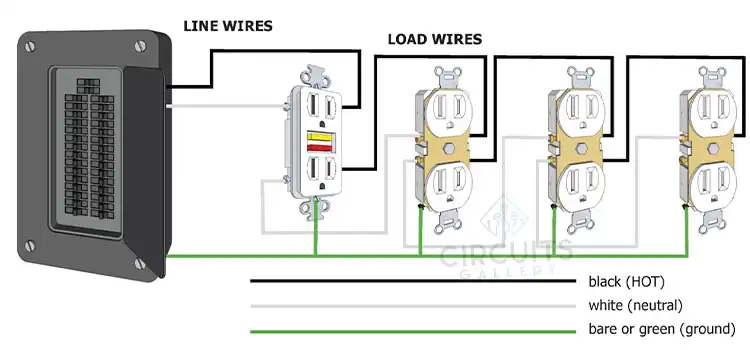

Before trying to find the first outlet, grasp some basic circuit knowledge. A circuit is a closed loop allowing electric current to flow. It has a power source, conductive wires, and an electrical load like lights or appliances. The first outlet is directly connected to the breaker supplying energy to the circuit.

Why is the First Outlet Important?

The first outlet in a circuit is important to find because it is the source of power for all of the other outlets on the circuit. If there is a problem with the first outlet, it can cause all of the other outlets on the circuit to not work.

Step-by-Step Process

Follow these steps to find the first outlet in the Circuit:

Step 1: Gather Necessary Tools and Safety Equipment

Safety is paramount when working with electrical systems. Have insulated tools, a non-contact voltage tester, an outlet tester, a headlamp, and a voltage meter. Turn off the circuit breaker, verify power is off, and remove jewellery or loose clothing.

Step 2: Create a Circuit Map

A rough circuit diagram depicting outlet locations simplifies the process. If a map doesn’t exist, make your sketch for reference. Note any GFCI and switched outlets.

Step 3: Locate the Service Panel

Find the main service panel, typically in the garage or basement. Opening it exposes the circuit breakers inside. Identify the breaker for the circuit you’re inspecting by flipping each off to see which outlets lose power.

Step 4: Check for a Single Cable

Remove the cover plate of your suspected first outlet. The first receptacle usually has just one cable entering directly from the breaker. Additional outlets have a pigtail connecting them down the line.

Step 5: Use a Voltage Tester

With the power off, disconnect the wires on an outlet and cap them. Turn the breaker on and use a non-contact voltage tester to check for power at other outlets. If they’re dead, your disconnected outlet was first.

Step 6: Conduct Elimination Testing

By systematically unhooking outlets, you can determine which kills power downstream when disconnected. That outlet must be first in line. Repeat until you find the one that leaves other outlets energized when detached.

Step 7: Employ a Circuit Tracer

Circuit tracers send a signal along wires that can be detected at outlets. Plug the transmitter into an outlet and move the receiver probe near others. The first receptacle will give the loudest signal.

Step 8: Consider Proximity to the Panel

Given electricians minimize wire runs, inspect outlets near the service panel first. While not a definitive indicator, physical closeness increases the probability of it being the initial outlet.

Step 9: Examine the Wiring

Removing the outlet exposes entering cables. The first receptacle normally has a single run from the breaker. Subsequent outlets have two cables – incoming and outgoing power.

Step 10: Label and Document

Once identified, permanently label the first outlet for easy future reference. Update your circuit map noting its location. Consider also labeling the corresponding breaker.

Key Questions

What Is a GFCI Outlet??

Answer: A GFCI outlet is a special type of outlet that protects against electric shock. GFCI outlets are typically installed in kitchens and bathrooms, where there is a greater risk of electric shock.

What if Multiple Outlets Lose Power at Once?

Answer: Some receptacles may be daisy-chained in parallel spur lines. You’ll need to trace each branch to find the individual first outlets.

Can I Use a Plug-in Outlet Tester?

Answer: While handy for detecting wiring issues, plug-in testers can’t pinpoint outlet order. They complement but can’t replace the process.

To Conclude

Understanding basic circuitry, having proper tools, systematic testing, inspection, and documentation allows accurate identification. By following this guide, you can gain assurance that your critical first outlet is correctly mapped for safety and proper functioning. If you are having trouble identifying the first outlet in a circuit, it is always best to consult with a qualified electrician.
