How to Connect a Motor to a Shaft

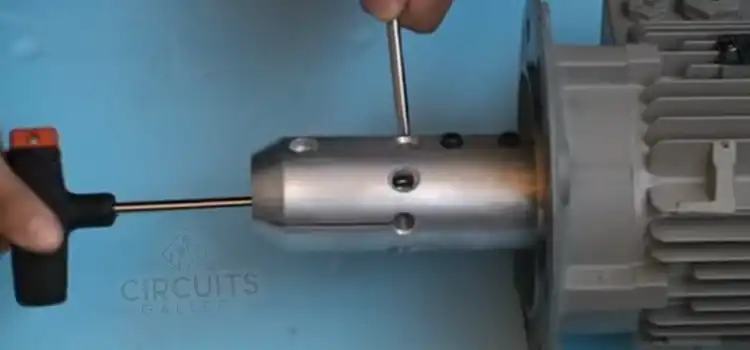

There are several ways to connect a motor to a shaft, but the most common is to use a set screw. To do this, first, make sure that the motor shaft and the shaft of the load are clean and free of debris.
Then, apply a small amount of grease or anti-seize compound to the motor shaft. Finally, place the motor shaft into the hole in the load shaft and tighten the set screw until it is snug.
If you are using a keyway and key, ensure that the keyway in the motor shaft and the load shaft are aligned before tightening the set screw. If you are using a coupling, follow the instructions that come with the coupling.
Types of Motor Shaft Connections
The most common types of motor shaft connections are:
Set screw/grub screw
This is the simplest and most common method and is suitable for most applications. A set screw is a small screw that threads into a hole in the shaft and presses against a flat spot on the motor shaft. This creates a friction fit that holds the two parts together.
Keyway and key
A keyway is a groove cut into the shaft and the motor shaft, and a key is a piece of metal that fits into the keyway. This creates a positive connection between the two parts that can withstand high torque.
Coupling
A coupling is a flexible device that connects the motor shaft to the shaft of the load. This allows for some misalignment between the two shafts, which can be helpful for reducing vibration and wear.
Taper lock
A taper lock is a type of coupling that uses a tapered sleeve to create a tight fit between the motor shaft and the load shaft. This is a good option for applications that require high torque and precision.
Welding
Welding is a permanent way to connect the motor shaft to the shaft of the load. This is a good option for applications where the two parts need to be very tightly connected and cannot be misaligned.
Choosing the Right Motor Shaft Connection
When choosing a motor shaft connection method, it is important to consider the following factors:
- Torque requirements: The connection method must be able to withstand the torque that will be transmitted from the motor to the load.
- Speed requirements: The connection method must be able to handle the speed at which the motor will be operating.
- Misalignment requirements: Some applications require the motor and load shafts to be precisely aligned, while others can tolerate some misalignment. The connection method must be able to accommodate the required degree of misalignment.
- Cost and complexity: Some connection methods are more expensive and complex than others. It is important to choose a method that is appropriate for the budget and resources available.
How to Connect a Motor to a Shaft Using a Set Screw
To connect a motor to a shaft using a set screw, follow these steps:
- Make sure that the motor shaft and the shaft of the load are clean and free of debris.
- Apply a small amount of grease or anti-seize compound to the motor shaft.
- Place the motor shaft into the hole in the load shaft.
- Tighten the set screw until it is snug.
- Test the connection by trying to rotate the motor shaft. The load shaft should also rotate.
How to Connect a Motor to a Shaft Using a Keyway and Key
To connect a motor to a shaft using a keyway and key, follow these steps:
- Make sure that the motor shaft and the shaft of the load have a keyway that is the same size and shape.
- Place the key into the keyway on the motor shaft.
- Place the motor shaft into the hole in the load shaft.
- Tighten the set screws that hold the motor shaft in place.
- Test the connection by trying to rotate the motor shaft. The load shaft should also rotate.
How to Connect a Motor to a Shaft Using a Coupling
To connect a motor to a shaft using a coupling, follow the instructions that come with the coupling. Different types of couplings have different installation procedures.
How to Connect a Motor to a Shaft Using a Taper Lock
To connect a motor to a shaft using a taper lock, follow these steps:
- Make sure that the motor shaft and the load shaft have a taper lock bushing that is the same size and shape.
- Place the taper lock bushing on the motor shaft.
- Place the motor shaft into the hole in the load shaft.
- Tighten the set screws that hold the taper lock bushing in place.
- Test the connection by trying to rotate the motor shaft. The load shaft should also rotate.
How to Connect a Motor to a Shaft Using Welding
To connect a motor to a shaft using welding, follow these steps:
- Make sure that the motor shaft and the load shaft are clean and free of debris.
- Tack weld the motor shaft to the load shaft in several places.
- Once the motor shaft is tacked in place, weld it around its entire circumference.
- Let the weld cool completely before testing the connection.
Frequently Asked Questions
What is the purpose of connecting a motor to a shaft?
This process allows the motor to transfer its rotational motion to the shaft, enabling the shaft to perform mechanical work in various applications.
What types of motors can be connected to a shaft?
Various types of motors, including electric motors, internal combustion engines, hydraulic motors, and more, can be connected to a shaft, depending on the application.
How do I select the right coupling for my motor-to-shaft connection?
Coupling selection depends on factors like misalignment tolerance, torque requirements, speed, and the specific application. Consult the manufacturer’s recommendations or seek professional advice.
What is the significance of aligning the motor and shaft?
Proper alignment minimizes wear, reduces vibration, and ensures efficient power transfer from the motor to the shaft.
Can I connect a motor directly to a shaft without a coupling?
In some cases, direct connections are possible, but using a coupling is recommended to accommodate misalignment and reduce stress on components.
How do I measure and check for alignment between the motor and the shaft?
Precision measuring tools like dial indicators and laser alignment systems can be used to assess alignment and runout.
What maintenance is required for a motor-to-shaft connection?
Regular inspections, lubrication, and checking for wear or misalignment are essential for maintaining a reliable connection.
What are the safety considerations when connecting a motor to a shaft?
Safety precautions may include securing the motor properly, wearing appropriate personal protective equipment, and de-energizing the motor when working on it.
Can I change the speed of the shaft by altering the motor-to-shaft connection?
Yes, you can change the speed of the shaft by selecting a motor with a different speed or by using gear reducers or variable frequency drives (VFDs).
Are there different types of couplings, and how do I choose the right one?
Yes, there are various coupling types, such as rigid, flexible, and fluid couplings. The choice depends on factors like torque, misalignment, and application requirements. Consult with experts or the coupling manufacturer for guidance.
Conclusion
The term shaft usually refers to a component of a circular cross-section that rotates and transmits power from a driving device, such as a motor or engine, through a machine. Shafts can carry gears, pulleys, and sprockets to transmit rotary motion and power via mating gears, belts, and chains.
