Microwave Capacitor Wiring Diagram

In high-voltage microwave oven transformers, microwave capacitors are employed. Microwave capacitors are utilized as tuning elements and as parts of simple and complicated filter designs. A high tolerance on a low capacitance value is frequently required when used as a tuning element

When used as a DC block or bypass, the impedance of RF transmission is typically all that matters.

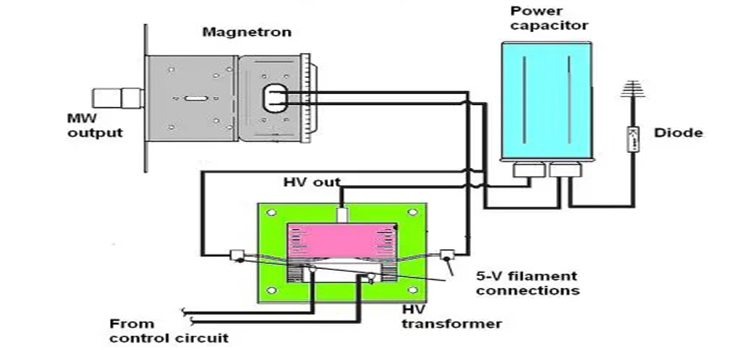

Microwave Capacitor Wiring Diagram

Every microwave contains a component known as a high-voltage capacitor, which retains deadly quantities of power long after the microwave has been unplugged.

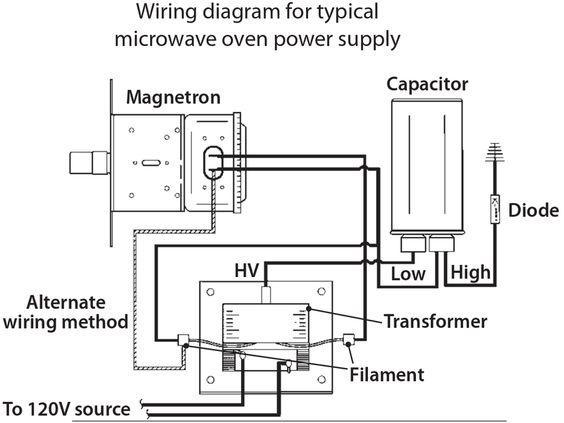

How Do You Wire a Microwave Capacitor

You must first identify the high and low terminals of a microwave capacitor before connecting it. If this process goes wrong, the transformer may be destroyed.

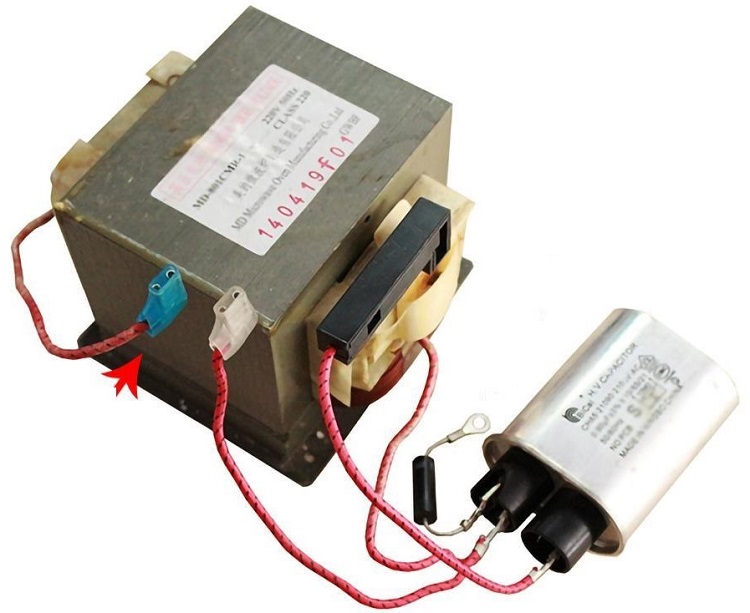

The low terminal of the capacitor is connected to the ungrounded terminal of the secondary winding from the HV transformer. The diode’s ring terminal grounds the appliance frame, while the diode’s other end connects to the capacitor’s high terminal.

One of the filament transformer’s winding terminals must also be connected to the capacitor’s negative terminal.

How Do I Connect My Lg Microwave Capacitor

What Are the 3 Wires on a Microwave Transformer

There are three windings in total, with the primary receiving 120 or 240V mains energy. The secondary is really powerful. The other end of the transformer, which is grounded to the core, provides a potentially fatal quantity of current.

Do I Need to Discharge a Microwave Capacitor

Discharging the capacitor in your microwave is important for avoiding harm to your microwave, your tools, and yourself. Even when your microwave is disconnected, a capacitor retains significant quantities of power, and it must be drained before any repairs can occur.

How Long Does a Capacitor Hold Its Charge in a Microwave

Some of these circuits could be charged in less than 20 seconds and kept the charge for up to 40 minutes while having comparatively high capacitances of up to 100-mile Farads. To achieve this, you’ll need a steady power supply. This constant power is provided by the capacitor in conjunction with the outlet’s power.

What Does a Capacitor Do in a Microwave

The capacitor is used to boost the magnetron’s power. The magnetron requires at least 1000 V, therefore the ordinary 120V (or 230V in some circumstances) is insufficient.

As a voltage doubler, the capacitor is utilized in conjunction with a diode. On the first half of the AC sine wave, the diode is employed to charge the capacitor through a step-up transformer.

The capacitor is in series with the secondary winding of the step-up transformer during the second half of the sinewave. This voltage is transmitted to the magnetron’s cathode. This value is the sum of the peak voltage across the capacitor and the voltage on the second half-sine wave’s average voltage. Around -2,000 volts is the cathode voltage.

What Does Magnetron Function in a Microwave

The magnetron generates the heat that cooks our food. The radio waves produced by the magnetron tube stimulate the water and fat molecules within the meal, generating friction. The food will heat up as a result of the contact, similar to rubbing your hands together quickly. This is the most basic aspect of how microwaves operate.

Frequently Asked Questions

What is the procedure for de-energizing a microwave capacitor

You basically contact the tip of a screwdriver with an insulated handle to a capacitor and pull it slowly towards the one across from it. This causes a short circuit, resulting in the discharge of electricity. It’s possible that you’ll have to repeat the process.

Conclusion

The main purpose of microwave capacitors is to boost the magnetron’s power. One of the most significant aspects of a microwave connection is the capacitor wire. The instruments may be damaged if the capacitor is not connected properly.
