Is UHMW Conductive

UHMW is available in conductive and anti-static versions. Therefore, it’s excellent for use in electronics and semiconductor applications. UHMW is an abbreviation for Ultra High Molecular Weight Polyethylene. It is the best quality polyethylene (PE) on the market, designed for difficult jobs and a wide range of applications.

Certainly, UHMW saves money in a variety of tough applications. The secret to this polymer’s remarkable features is its Ultra High Molecular Weight. Its high-density polyethylene resin has a molecular weight range of 3 to 6 million, whereas high molecular weight (HMW) resins have a range of 300,000 to 500,000.

Ultra-High Molecular Weight Polyethylene, UHMW frequently slips under the radar, staying an unknown substance to most firms and manufacturers. UHMWPE or UHMW is a semi-crystalline linear (non-branching) polymer that can be defined as a two-phase composite of crystalline and amorphous phases.

The fiber of UHMW is a type of polyolefin fiber. These fibers are made up of exceptionally long polyethylene chains that are all aligned in the same direction. Many van der Waals bonds connect each chain to the next. This results in improved physical qualities.

Structure of UHMW

The crystalline phase of UHMW comprises chains folded into strongly orientated lamellae, with orthorhombic crystals. The lamellae have a thickness of 10-50nm and a length of 10-50m. Therefore, these are arbitrarily orientated inside the amorphous phase, with tie molecules connecting individual lamellae.

Is UHMW Polyethylene a Conductor or Insulator

UHMW is a good insulator. Conveyor line components, bearings, guide rails, star wheels, and wear strips are all made of UHMW polythene. It’s also often utilized in packaging and food processing machines to allow for repeated motions and movements over long periods.

Is UHMW Anti-static

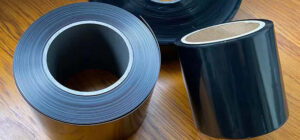

UHMW is available in an anti-static grade. Therefore, it aids in the prevention of ESD (static discharge) or the accumulation of dust and particles on the product surface. The anti-static ingredients are integrated into the material, ensuring that the anti-static qualities last the entire life of the material.

Anti-static UHMW is an excellent material to use in potentially volatile environments For example, in grain elevators and munitions facilities, as it efficiently protects against static discharges.

What Is the Difference Between UHMW and UHMWPE

UHMW and UHMWPE both stand for the same thing. These are commonly utilized in maritime structures for ship anchoring and floating structures in general. The UHMWPE or UHMW serves as the contact surface between the floating and fixed structures.

What Is the Difference Between UHMW and HDPE

UHMW and HDPE are thermoplastic polymers that seem similar. The primary distinction between UHMW and HDPE is that UHMW has long polymer chains with extremely high molecular weights, whereas HDPE has a high strength-to-density ratio.

What Is the Difference Between UHMW and PTFE

You can find the differences between UHMW and PTFE in the table below.

UHMW	PTFE
UHMW (ultra-high molecular weight polyethylene) is extremely tough plastic.	PTFE (polytetrafluoroethylene) is soft plastic.
It has high abrasion.	PTFE is a low friction fluoropolymer.
UHMW comes with wear resistance.	PTFE has outstanding chemical resistance and weathering resistance
UHMW isn’t suitable for high-temperature uses.	PTFE is stable at temperatures up to 500°F and it is often used in high-temperature environments.

Is UHMW Stronger Than Steel

UHMWPE fibers have an extremely high tensile strength, which implies the material is substantially stronger than steel in the fiber direction. The tensile strength of high-strength steel is roughly 900 MPa, yet it takes approximately 3000 MPa to break the fibers of UHMWPE.

What Is UHMW Used For

UHMW is widely used for the following reasons.

Chute, hopper, and truck bed liners.
Wear strips and guide rails.
Star wheels and idler sprockets.
High-speed conveyors.
Packaging machinery parts.
Food processing machinery parts.
Bumpers, pile guards, and dock fenders.

How to Bond UHMW

Perform the following steps to bond UHMW:

Thoroughly wipe both surfaces using a cleaner such as alcohol to remove even fingerprint grease.
Using 4-0 sandpaper, roughen both edges that will be bonded – the side of the plastic and the side of whatever you are going to stick to it.
Use an open flame, such as a hand-held torch, to oxidize the surface of the plastic in a couple of fast passes.
Allow no blistering of the material.
Apply adhesive to both surfaces and let it dry until sticky.
Press the components together and tighten the clamp. Allow sitting for the night.

Frequently Asked Questions

What is equivalent to UHMW?

UHMW (Ultra High Molecular Weight Polyethylene) and PTFE Sheet (Polytetrafluoroethylene) are both extremely similar. They both share key traits that make them comparable.

Conclusion

When it comes to selecting the correct plastics for your particular projects, there are numerous possibilities available. However, if you’re looking for a robust, lightweight, and long-lasting plastic, UHMW may be the option for you. UHMW sheet is often used for lining chutes.
