Polaris Starter Solenoid Wiring Diagram | A Complete Wiring Guide
When it comes to maintaining and repairing your Polaris vehicle, understanding the electrical components is essential. One crucial component is the starter solenoid, which plays a pivotal role in starting your engine.
In this article, we will delve into the Polaris starter solenoid wiring diagram to help you grasp the wiring setup and troubleshoot any issues that may arise.
Starter Solenoid’s Function
The starter solenoid is a vital component in your Polaris vehicle’s electrical system. It serves as a bridge between the battery and the starter motor. When you turn the key, a small electrical current is sent to the solenoid, which then closes a set of contacts, allowing a larger current from the battery to flow to the starter motor.
This, in turn, engages the starter and initiates the engine’s cranking.
Wiring Diagram of Polaris Starter Solenoid

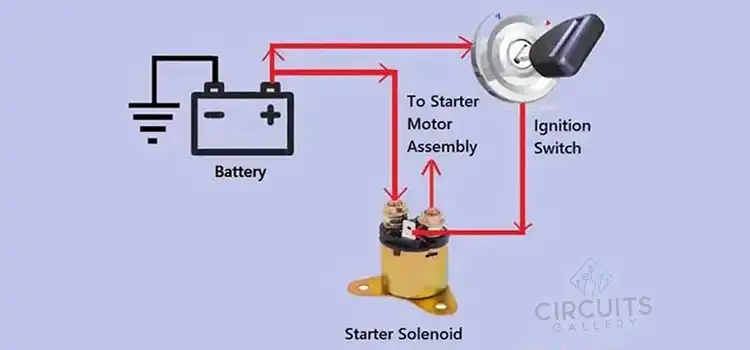

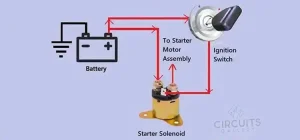

Image 1- Circuit Diagram of Polaris Starter Solenoid
Wiring Diagram Explanation
To comprehend the Polaris starter solenoid wiring diagram, you’ll need to familiarize yourself with the various components and connections involved. While these diagrams can vary depending on the specific model and year of your Polaris vehicle, there are common elements you can expect to find:
1. Battery Connection
The main power source for the starter solenoid is the vehicle’s battery. You’ll typically find a thick red or black wire that connects the battery’s positive terminal to the large terminal on the solenoid.
2. Starter Motor Connection
Another thick cable, often red or black, connects the other large terminal on the solenoid to the starter motor. This wire allows the high-amperage current to flow from the solenoid to the starter motor, enabling it to turn the engine.
3. Ignition Switch Connection
A thinner wire, usually yellow or green, is connected to a smaller terminal on the solenoid. This wire comes from the ignition switch and carries a lower amperage signal that activates the solenoid when you turn the key.
4. Ground Connection
The starter solenoid needs a good ground connection to function properly. A ground wire is connected to the solenoid’s metal casing, which, in turn, should be securely grounded to the vehicle’s chassis.
5. Starter Relay
In some Polaris models, you may also find a starter relay in the wiring diagram. The starter relay is a separate component that helps control the flow of current to the solenoid. It’s often connected to the ignition switch and can be either external or integrated into the solenoid.
Troubleshooting and Maintenance
Understanding the wiring diagram is essential when troubleshooting starter solenoid issues. If your Polaris vehicle is experiencing starting problems, you can use the diagram to check for loose connections, damaged wires, or other electrical issues. Here are some common problems and solutions:
1. Check for loose connections at the battery, solenoid, and starter motor terminals. Ensure all connections are clean and tight.
2. Inspect the wires for any signs of damage, such as fraying or corrosion. Replace damaged wires as needed.
3. Test the ignition switch to ensure it’s sending the signal to the solenoid correctly. If not, you may need to replace the ignition switch.
4. Verify the ground connection. Poor ground can lead to starting problems. Make sure the solenoid is securely grounded to the vehicle’s chassis.
5. If the solenoid clicks but the starter motor doesn’t engage, the solenoid itself may be faulty and need replacement.
Frequently Asked Questions
How can I find the correct wiring diagram for my Polaris vehicle’s starter solenoid?
You should consult the specific service manual for your Polaris model and year. These manuals provide accurate wiring diagrams tailored to your vehicle.
How can I determine if my Polaris starter solenoid is faulty?
If you hear a clicking sound when you turn the key but the starter motor doesn’t engage, it could indicate a faulty starter solenoid. Testing the solenoid and its connections can help confirm the issue.
What should I do if my Polaris vehicle’s starter solenoid gets wet or exposed to moisture?
Moisture can affect electrical components. If the solenoid gets wet, allow it to dry completely before attempting to start your vehicle. Additionally, check for corrosion on the wiring and clean or replace affected parts as needed.
Conclusion
Polaris starter solenoid wiring diagram is important for maintaining and troubleshooting your vehicle’s electrical system. By familiarizing yourself with the various connections and components, you can confidently address any starting issues that may arise.
