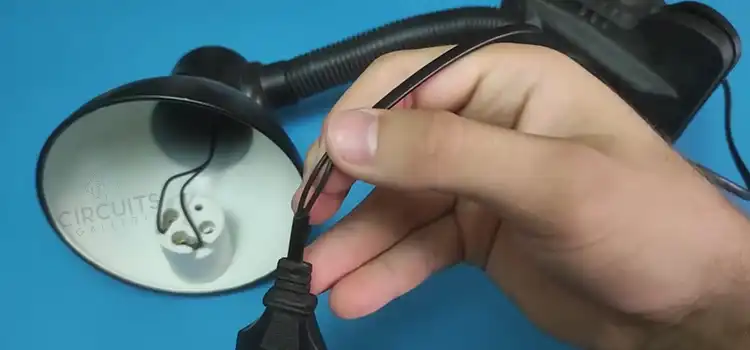

Understanding the hot wire is essential for designing and settling light cords. This serves as a conduit for power, forming the brightening that characterizes a space. But often the hot wire gets mixed up with the neutral one.
The hot wire of a lamp cord is smooth, or black, or the wire that gives a voltage reading when examined using a multimeter. In this article, we’ll dig into a crucial address: distinguishing the hot wire in a lamp’s wiring.
Lamp Cord Wiring
Lamp cord wiring holds the key to secure and useful brightening. A lamp cord comprises two vital wires: the hot wire and the neutral wire.
The hot wire conveys electrical current to power the lamp, whereas the neutral wire completes the circuit. The exact identification of the hot wire is basic for both security and legitimate usefulness.
Understanding Hot Wires in Electrical Wiring
A hot wire is a conductor capable of carrying electrical current from a control source to a device, installation, or outlet. It’s suitably named “hot” due to the presence of electric potential, which is the energy that impels the stream of electrons.
This current is what powers appliances, lights, and hardware, empowering them to operate as expected.
How to Identify Hot Wire on Lamp Cord
Identifying the hot wire on a lamp cord is a significant aptitude for secure and viable electrical work. As a beginner, it is troublesome to understand which wire is the hot wire.
Below are many ways to distinguish them:
Identifying Hot Wire Through Color
The simplest way to recognize the wires is to utilize color coding.
Now, although numerous nations have rules for colors that represent the polarity of the wire, the manufacturer eventually controls that.
The common choice utilized to represent a hot or live wire on a lamp cord is black. In any case, the producer can effectively decide to use a white or red wire to represent a direct association.
In some cases, the producer may even utilize dark or white for the hot and neutral connections of your lamp cord. This is often why other methods of hot wire identification are essential.

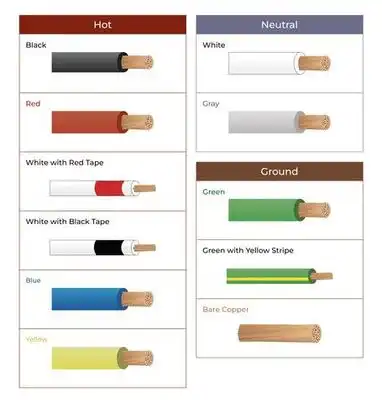

Image 1: Wire Color Code
Identifying Hot Wire Through Texture
An additional way to recognize the hot wire in your lamp cord includes texture. Unlike neutral wire, which frequently highlights ridges or lines, hot wire tends to have a smooth texture. This qualification becomes important when managing wires of the same color.
Additionally, comparable to color codes, the manufacturer’s choices intensely impact how the texture is deciphered.

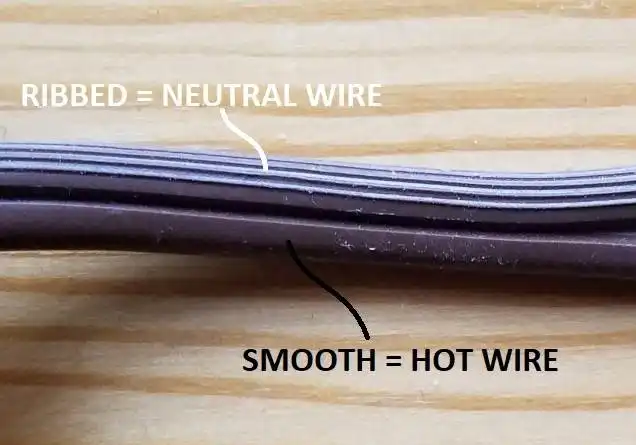

Image 2: Identifying Hot Wire Through Texture
Identifying Hot Wire Using Multimeter
A multimeter is the best tool used to identify the hot wire of the lamp cord.

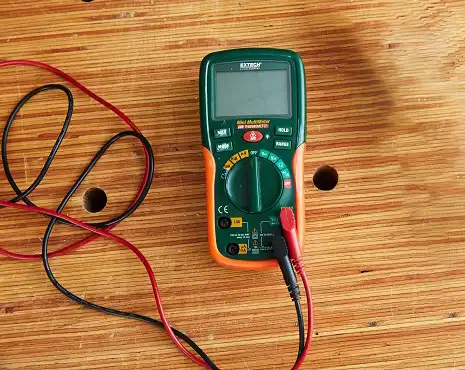

Image 3: Multimeter
Ensure current flow when testing the lamp plug’s hot wire; avoid contact with live currents. Wear insulated gloves before multimeter testing and avoid touching the lead connected to the lamp cord wire.
In your home, AC voltage is utilized. Assess the lamp cord by setting the multimeter to AC voltage (“V~” or “VAC”). Set the dial slightly higher than your socket’s supply; e.g., choose 200VAC for a 120-volt supply, and 600VAC for 240 volts.
Place the negative probe on the ground or a nearby metal surface, such as a screw.
Identify the hot wire through voltage testing. Connect the lamp plug and switch on the light. Test each wire with the multimeter’s red lead against the ground connection.

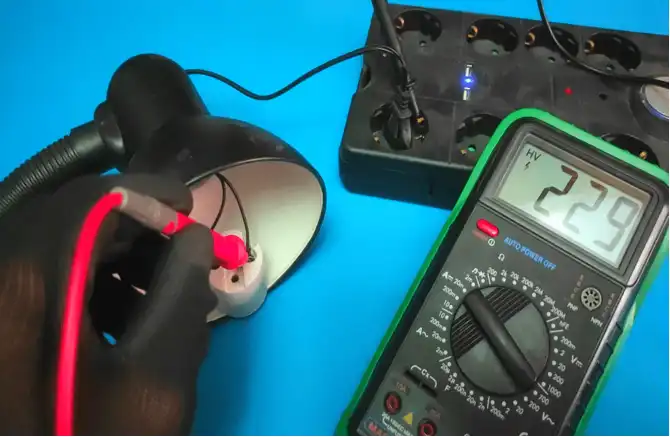

Image 4: Testing Each Wire with Red Probe
Recognize the hot wire by a voltage reading matching the cord’s power supply (e.g., 120VAC, 240VAC). If no reading, there’s no power supply or a potential wiring short.
Frequently Asked Questions
Are there any risks involved in identifying the hot wire incorrectly?
Yes, incorrect identification might lead to dangerous circumstances, including electric shocks or harming the lamp.
What safety precautions should I take while testing for the hot wire?
Always wear rubber-insulated gloves and maintain a strategic distance from touching the multimeter lead during testing.
What safety risks should I be aware of while handling a lamp?
Prioritize assessing wires and cords for fraying or harm to avoid potential shock hazards. Make sure to turn off the breaker before starting work. Also, permit bulbs to cool down after exchanging them off to anticipate burns.
Conclusion
Secure and useful lighting depends on knowing which wire in a lamp cord is the hot one. These methods, which incorporate texture analysis, voltage testing, and more, deliver you the information and aptitudes vital to dependably work electrical frameworks and guarantee their best execution.
