[Explained] What Gauge Wire for Doorbell?
The right gauge wire for your doorbell is important for ensuring that it functions properly and safely. Doorbell wire is typically available in gauges ranging from 14 to 18 AWG. The best gauge wire for your doorbell will depend on several factors.
In this article, we will discuss the different factors to consider when choosing a doorbell wire gauge, as well as provide specific recommendations for different types of doorbells.
Wire Gauge Basics
Wire gauge refers to the diameter and cross-sectional area of the wire conductor. The American Wire Gauge (AWG) system specifies standard wire sizes. Higher AWG numbers indicate thinner wires, while lower AWG numbers denote thicker wires.
Wire gauge affects the wire’s electrical resistance, current rating, and durability. Matching gauge to amperage prevents dangerous overheating.
Factors to Consider When Choosing Doorbell Wire Gauge
When installing or replacing your doorbell, there are several factors you need to consider before choosing doorbell wire:
- Length of the wire run: The longer the wire runs, the thicker the wire needs to be to minimize voltage drop. This is because the resistance of a wire increases with its length.
- Type of doorbell: Some doorbells require more power than others. For example, video doorbells require more power than traditional doorbells.
- Ambient temperature: In cold weather, the resistance of a wire increases. This means that you will need to use a thicker wire in cold weather to minimize voltage drop.
Mathematical Analysis
For a typical 24V doorbell, with a max 5% Voltage Drop:
VD = 24V * 0.05 = 1.2V
Next, we use the voltage drop formula:
VD = I * R * L
Where:
R = resistance per unit length (Ω/ft)
Rearranging to calculate the required resistance R:
R = VD/(I * L)
= 1.2/(1*50)
=0.024/ft
Using resistance per foot values for different AWG wires, 18 AWG = 0.016 Ω/ft meets the requirement.
Therefore, 18 AWG wire provides a good balance of sufficient conductivity and ease of installation for typical doorbell wiring runs. The voltage drop calculations confirm 18 AWG as a suitable gauge
Recommended Doorbell Wire Gauge
The following table provides recommended doorbell wire gauges for different types of doorbells and wire run lengths:
Doorbell type | Wire run length (feet) | Recommended wire gauge |
Traditional Doorbell | Less than 50 | 18 |
Traditional Doorbell | 50-100 | 16 |
Traditional Doorbell | Over 100 | 14 |
Video Doorbell | Less than 50 | 16 |
Video Doorbell | 50-100 | 14 |
Video Doorbell | Over 100 | 12 |
Risks of Incorrect Gauges
Using unsuitable doorbell wire gauges can result in:
- Doorbell malfunction due to undervoltage
- Thermal damage from overheating
- Excessive voltage drops
- Loose connections and arcing
- Difficulty in routing overly thick wires

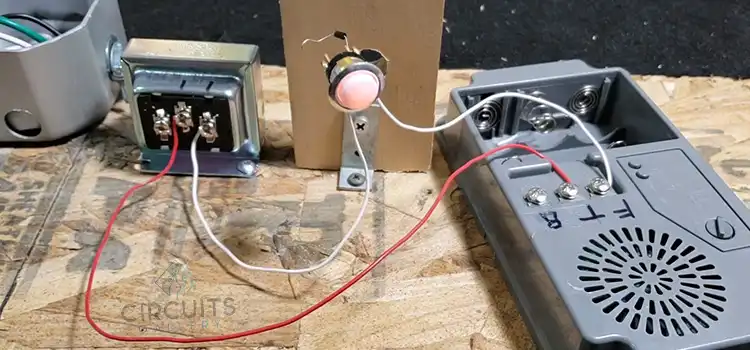

Step-by-Step Guide for Installing Doorbell Wiring
Follow these steps for hassle-free doorbell wiring:
- Select Suitable Wire Gauge: Choose the right wire thickness based on the doorbell type and wiring length using the recommendations above.
- Run Wire to Transformer: Fish the wiring from the doorbell location to the plug-in transformer, leaving an extra length.
- Wire Transformer to Power: Connect transformer input wires to a 120V power source, either at an outlet or junction box.
- Connect Wires to Transformer Output: Attach wiring leads to the low voltage terminals on the transformer output side.
- Route Wires to Doorbell Location: Run wires to the doorbell mount location, stapling neatly along the route. Leave slack.
- Connect Wires to the Doorbell: Attach wires to the screw terminals on the doorbell. Follow polarity if specified.
- Mount Doorbell and Button: Securely mount the doorbell and connect the button wires to the doorbell wires.
- Test System: Restore power and test system by pushing the button and verifying doorbell operation.
Potential Hazards of Undersized Wires
Using insufficiently sized wires can lead to:
- Fire hazards from overheating
- Damage to sensitive electronics
- Loose connections and arcing
- Electrical shocks and electrocution
FAQs – Frequently Asked Questions and Answers
- Is it okay to use a lower gauge wire than recommended?
Answer: No, it is not recommended to use a lower gauge wire than recommended. This is because a lower gauge wire will have higher resistance, which can lead to voltage drop and performance problems.
- Is it okay to use a higher gauge wire than recommended?
Answer: Yes, you can use a higher gauge wire than recommended. However, there is no need to use a higher gauge wire unless you have a very long wire run or you are experiencing voltage drop problems.
- Can stranded wires be used for doorbells?
Answer: Yes, stranded wire can be used by ensuring no loose strands at connections.
To Conclude
Choosing the right gauge wire for your doorbell is important for ensuring that it functions properly and safely. By following the recommendations in this article, you can choose the right gauge wire for your specific needs. You can always get help from professional technicians for wire size selection.
