[Explained] What Gauge Is Telephone Wire?
Telephone wire is a type of electrical cable that is used to transmit voice and data signals over short distances. It is typically made of copper or aluminum and is available in a variety of gauges. The gauge of a wire refers to its thickness, with lower gauge numbers indicating thicker wires.
Standard Gauges for Telephone Wire
The most common gauges for telephone wire are 22 gauge and 24 gauge. 22 gauge wire is slightly thicker than 24 gauge wire and is able to carry more current.
It is typically used for longer runs of telephone wire or for applications where more power is needed. 24 gauge wire is the most common type of telephone wire and is suitable for most residential and commercial applications.
Factors Affecting Gauge Selection
The gauge of telephone wire that you need will depend on several factors, including:
- Length of the wire run: Longer runs of wire require thicker gauge wire to minimize signal loss.
- Number of devices that will be connected to the wire: More devices require thicker gauge wire to provide sufficient power.
- Type of devices that will be connected to the wire: Some devices, such as modems and routers, require more power than others.
Color Coding of Telephone Wire

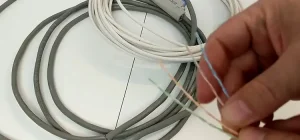

Figure 2: Pairs telephone wire with colorcoded
Telephone wire is typically color-coded to make it easier to identify the different pairs of wires. The most common color coding scheme is as follows:
- Red: Tip wire
- Green: Ring wire
- Black: Ground wire
- Yellow: Yellow wire (used for additional lines)
Types of Telephone Wire
There are two main types of telephone wire: solid and stranded. Solid wire is made of a single conductor, while stranded wire is made of multiple strands of wire twisted together. Stranded wire is more flexible and is less likely to break than solid wire. It is typically used for applications where the wire will be moved or flexed frequently.
Using Telephone Wire for Other Applications
Telephone wire can also be used for other applications, such as:
- Speaker wire: Telephone wire can be used to connect speakers to a stereo or amplifier.
- Data cable: Telephone wire can be used to connect computers and other devices together.
- Low-voltage lighting: Telephone wire can be used to power low-voltage lighting systems.
Safety Precautions When Working with Telephone Wire
When working with telephone wire, it is important to take the following safety precautions:
- Always turn off the power to the circuit before working on the wire.
- Use caution when stripping the insulation from the wire.
- Do not connect telephone wire to electrical outlets.
- Do not use telephone wire that is damaged or frayed.
Where to Purchase and Cost of Telephone Wire
Telephone wire can be purchased at most hardware stores, electronics stores, and online retailers. The cost of telephone wire varies depending on the gauge, type, and length of the wire. However, telephone wire is generally relatively inexpensive.
Frequently Asked Questions and Answers (FAQs)
Are there different gauges of telephone wire for various applications?
Yes, while 22 AWG is common for telephone wiring, other gauges such as 24 AWG may be used for specific applications, and thicker gauges like 19 AWG can be used for outdoor or long-distance installations.
Why is 22 AWG commonly used for telephone wiring?
22 AWG is chosen for its balance between conductivity and flexibility, making it suitable for indoor telephone wiring where flexibility is important, and the distances involved are typically short.
Can I use a smaller gauge wire for telephone connections?
Using a smaller gauge wire may lead to increased resistance, potentially causing signal degradation, especially over longer distances. It’s advisable to adhere to the recommended gauge for reliable performance.
What is the maximum distance for telephone wiring using standard gauge wire?
The maximum distance depends on factors such as the gauge of the wire, signal strength, and the specific telephone system. Generally, for 22 AWG wire, distances of up to several hundred feet are common.
Can I use thicker wire for telephone wiring to extend the distance?
While using a thicker gauge, such as 19 AWG, can extend the distance for telephone wiring, it’s essential to consider compatibility with telephone jacks and equipment, as well as the increased cost and reduced flexibility of the thicker wire.
Is there a difference in gauge for indoor and outdoor telephone wiring?
Outdoor telephone wiring may require a thicker gauge, such as 19 or 24 AWG, to account for longer distances and the environmental conditions. Indoor wiring typically uses 22 AWG.
Can I use Ethernet cables instead of telephone wire for my phone connections?
In many cases, Ethernet cables can be used for telephone connections, as they often contain multiple twisted pairs of conductors. However, it’s important to ensure compatibility with your specific telephone system.
Conclusion
Telephone wire is a versatile and affordable type of electrical cable that is used for a variety of applications. Remember to always take safety precautions when working with electrical wires.
