Light-dependent resistors, also known as LDRs or photoresistors, are electrical components that detect light and modulate the function of a circuit based on the levels of light.

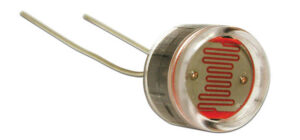

What Does LDR Mean
Light-dependent resistors are frequently employed in electronic circuit designs to sense the presence or amount of light. The light-dependent resistor, LDR, photoresistor, or even photocell, photocell, or photoconductor are all names for these electrical components.
LDRs have been employed in a wide range of applications due to their inexpensive cost, ease of fabrication, and ease of use. LDRs were once utilized in photographic light meters, and they are currently used in many applications where light levels need to be detected.
Light Dependent Resistor or LDR
A photoresistor, sometimes known as a light-dependent resistor, is a light-sensitive electrical component. The resistance changes when light shines on it. The resistance of the LDR can vary by many orders of magnitude, with the resistance decreasing as the number of light rises.
It’s not unusual for an LDR or photoresistor’s resistance to be numerous megohms in obscurity and then drop to a few hundred ohms in intense light. LDRs are simple to use because they have such a wide range of resistance, and there are several LDR circuits obtainable. The wavelength of incident light affects the responsivity of photoresistors.
To achieve their light-sensitive capabilities, LDRs are composed of semiconductor materials. Many materials can be employed, but cadmium sulfide, or CdS, is a popular choice for these photoresistors. However, usage of these cells is presently limited in Europe due to cadmium-related environmental concerns.
Cadmium (CdSe) is similarly prohibited. Lead sulfide (PbS) and indium antimonide (InSb) are two more materials that can be employed. Although these photoresistors are made of semiconductor material, they are totally passive devices since they lack a PN junction, which distinguishes them from other optoelectronics such as photodiodes and phototransistors.
The LDR sign, which is used in electronic circuits, is based on the resistor circuit symbol, but it includes light in the shape of arrows. It follows the same convention as photodiode and phototransistor circuit symbols, which employ arrows to represent light falling on these components.
Working of an LDR
A high number of free electrons in a good conductor can wander in a given direction when a potential difference is applied. Insulators with a high resistance have a small number of free electrons, making it difficult to move them and hence electricity to flow.
Any semiconductor material with an increased resistance can be used to make an LDR or photoresistor. It has a high resistance because there are only a few free electrons that can move; the great majority of electrons are trapped in the crystal lattice and unable to migrate. As a result, there is a lot of LDR resistance in this state.
How Light Contributes
Light photons are absorbed by the semiconductor lattice and some of their potentials are transmitted to the electrons as they fall on the semiconductor. This provides enough energy for some of them to break loose from the crystal lattice and conduct electricity.
As a result, the semiconductor resistance and thus the overall LDR resistance are reduced. As more light strikes on the LDR semiconductor, more electrons are freed to conduct electricity, lowering the resistance.
Frequency Dependency of LDR
Photoresistors’ sensitivity is proven to fluctuate depending on the wavelength of the light that strikes the sensitive portion of the device. The effect is strong, and it is discovered that if the wavelength is outside of a certain range, there is no discernible effect. Different materials react differently to different wavelengths of light.
It means different electronics components can be utilized for different applications. Extrinsic photoresists are also found to be more susceptible to longer wavelength light and can be employed for infrared imaging. When dealing with infrared, however, caution must be exercised to avoid heat build-up induced by the radiation’s elating effect.
Latency of Photoresistor or Light-Dependent Resistor
The latency is the time it takes for the electrical component to act on any changes. It’s an important feature of photoresistors or light-dependent resistors. This is especially true in the case of circuit design.
Any changes in light level take a notable length of time before the LDR or photoresistor achieves its final value for the new level of light. Thus an LDR is not a viable solution where light values change pretty quickly. When light changes occur over a while, however, they are more than sufficient.
The resistance recovery rate is the pace at which resistance changes. When light is applied after utter darkness, the LDR or photoresistor generally responds in a few tens of milliseconds. When light is withdrawn, the resistance can take up to a second to reach its final level.
LDRs are extremely versatile electrical components that can be employed in a wide range of light sensor applications and electronic circuit designs. As the resistance of LDRs varies so much, they’re very handy.
