Schottky diodes have a low forward voltage drop and fast switching speed, making them suitable for rectification and high-frequency applications. On the other hand, Zener diodes exploit the Zener breakdown effect to regulate voltage and protect against voltage spikes or transients.
What is the Difference Between Schottky Diode and Zener Diode?
The main differences between a Schottky diode and a Zener diode lie in their electrical factors, construction, operation, and functionality.
Figure: Symbols of Schottky diode and a Zener diode
(A) Electrical Factors
When comparing Schottky diodes and Zener diodes in terms of electrical factors, there are several key differences to consider:
1. Forward Voltage Drop
Schottky diodes have a significantly lower forward voltage drop compared to Zener diodes. The typical forward voltage drop of a Schottky diode is around 0.2-0.3 volts.
Zener diodes have a relatively higher forward voltage drop compared to Schottky diodes. The forward voltage drop of a Zener diode varies depending on its specific characteristics, but it is generally higher than that of a Schottky diode.
2. Reverse Voltage Tolerance
Schottky diodes typically have a lower reverse voltage tolerance compared to Zener diodes. Their reverse voltage ratings are usually in the range of tens to hundreds of volts.
Zener diodes are specifically designed to operate in the reverse-biased breakdown region. They have a higher reverse voltage tolerance compared to Schottky diodes.
3. Breakdown Behavior
Schottky diodes do not exhibit a well-defined breakdown voltage characteristic. Instead, they have a soft breakdown behavior with increasing reverse voltage, which results in a gradual increase in leakage current.
Zener diodes have a well-defined breakdown voltage, known as the Zener voltage. When the reverse voltage across a Zener diode reaches or exceeds its Zener voltage, it enters the breakdown region and maintains a relatively constant voltage drop across its terminals.
4. Resistance
Schottky diodes have a lower forward resistance (known as dynamic resistance) compared to Zener diodes, which contributes to their lower forward voltage drop and faster switching characteristics.
Zener diodes have a higher dynamic resistance compared to Schottky diodes, which results in a relatively higher forward voltage drop and slower switching speeds.
(B) Construction

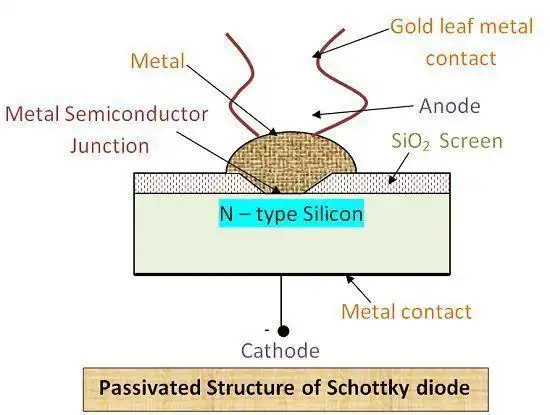

Figure: Construction of Schottky Diode
A Schottky diode is formed by the junction of a metal contact and a semiconductor material, typically silicon or gallium arsenide.

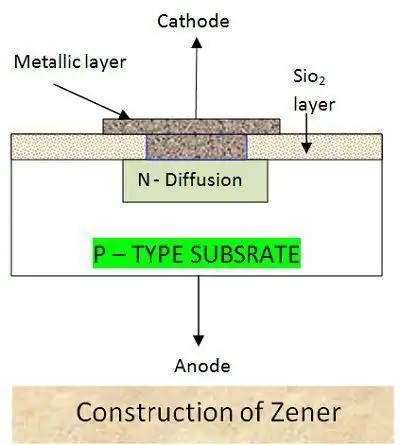

Figure: Construction of Zener Diode
A Zener diode is a heavily doped p-n junction diode specifically designed to operate in the reverse-biased breakdown region.
(C) Operation

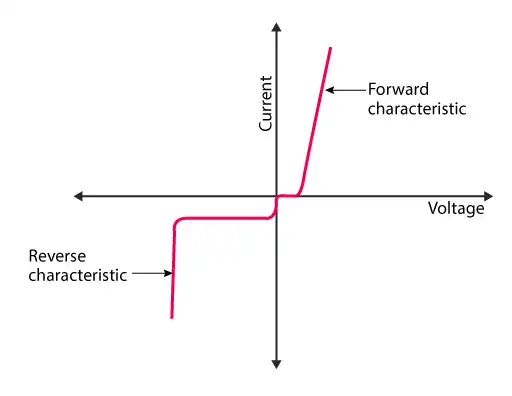

Figure: VI Characteristics Curve of Schottky diode
Schottky diodes have a low forward voltage drop (typically 0.2-0.3V) and fast switching speeds due to their metal-semiconductor junction.

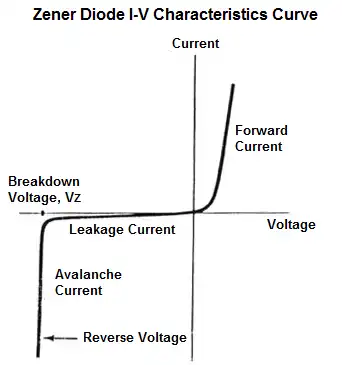

Figure: VI Characteristics Curve of Zener diode
Zener diodes are designed to exploit the Zener breakdown effect, allowing them to regulate voltage by maintaining a constant voltage level across their terminals.
(D) Functionality
Schottky diodes are commonly used in applications where low forward voltage drop, fast switching, and low reverse recovery time are important, such as rectification, power supplies, and high-frequency circuits.
Zener diodes are primarily used for voltage regulation, voltage clamping, and protection against voltage spikes or transients in circuits. They maintain a stable voltage across their terminals, even when the current varies.
What is a Schottky Diode Used For?
Schottky diodes find application in various electronic circuits due to their unique characteristics. Here are some common uses of Schottky diodes:
1. Rectification
Schottky diodes are commonly employed in rectifier circuits where their low forward voltage drop.
2. Switching Applications
The fast switching speed of Schottky diodes makes them ideal for high-frequency applications.
3. Power Supplies
Schottky diodes are frequently used in power supply circuits to convert alternating current (AC) to direct current (DC) efficiently.
4. RF and Microwave Circuits
Due to their low junction capacitance, Schottky diodes are suitable for high-frequency applications.
Why Not Use Schottky Diode?
While Schottky diodes offer several advantages, they may not be suitable for every application. Here are some reasons why Schottky diodes may not be preferred:
1. Higher Leakage Current
Schottky diodes exhibit higher leakage current compared to conventional p-n junction diodes, which can be a concern in certain low-power or battery-powered applications.
2. Lower Reverse Voltage Capability
Schottky diodes have lower reverse voltage ratings compared to other diodes. If a circuit requires higher reverse voltage tolerance, alternative diodes may be more suitable.
3. Thermal Considerations
Schottky diodes have a lower thermal capacity, making them more prone to overheating under high currents or power dissipation conditions.
FAQs – Frequently Asked Questions and Answers
Can I replace the Schottky diode with the Zener diode?
No, Schottky diodes and Zener diodes serve different purposes and have distinct electrical characteristics. They cannot be replaced interchangeably. Select the appropriate diode based on your specific circuit requirements.
Can Schottky diodes be used for rectification purposes?
Yes, Schottky diodes are commonly used in rectifier circuits due to their low forward voltage drop and fast switching speed, which improves overall efficiency.
To Conclude
While selecting the appropriate diode for a specific circuit requirement, make sure to evaluate their unique properties such as voltage tolerance, and forward resistance. Attempting to replace one with the other can lead to circuit malfunctions or performance issues.
