Rascal 600 Scooter Wiring Diagram [Everything You Need to Know]

Electric Mobility makes the three-wheeled Rascal 600 electric mobility scooter. It is renowned for being simple to use, strong, and comfortable to ride in. The Rascal 600 is still a well-liked scooter among those who use wheelchairs despite Electric Mobility no longer being in business.

It should be noted that since the Rascal 600 is no longer produced, it could be challenging to obtain brand-new units for sale. However, a variety of pre-owned Rascal 600 scooters are offered by internet merchants and mobility aid sellers. To delve into the depth of the Rascal 600 Scooter’s functionality and infrastructure, we covered its wiring diagram and necessary briefs.

How Can I Wire Rascal 600 Scooter?

The connections between each of these parts are depicted by the wiring diagram. It’s crucial to remember that depending on the model and year of production, the wiring schematic for your Rascal 600 scooter may change. The following explanations describe the electrical system’s essential parts for the scooter.

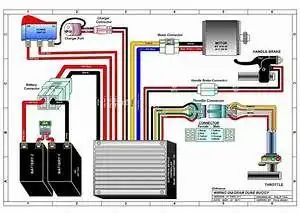

Fig 1: Simplified simulation of Rascal 600 Scooter wiring

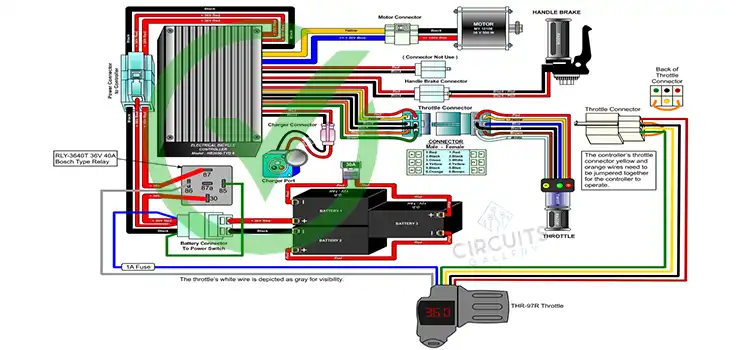

Fig 2: Wiring diagram of Rascal 600 Scooter

Battery

The scooter’s power source is the battery. Usually, it can be found in the front basket or under the seat. The positive and negative terminals of the battery are used to attach it to the controller. Typically, the negative terminal is black and the positive terminal is red.

Controller

The electrical system of the scooter is controlled by the controller. It controls the battery’s energy before sending it to the motor and other electrical parts. Usually, the controller can be found in the front basket or under the seat.

Motor

The scooter’s wheels are propelled by the motor. Usually, it is found in the scooter’s back axle. The motor leads are used to link the motor to the controller. Two large red and black cables serve as the typical motor leads.

Tiller

The scooter’s controls, including the throttle, brake, and horn, are located on the tiller. The tiller harness ties the controller and tiller together. The tiller harness is a collection of cables that joins the controller to the tiller controls.

Lights

The scooter is visible to other drivers and pedestrians thanks to the lights that brighten the street. The light harness is used to link the lights to the controller. The cables that link the lights to the controller are connected via the light harness.

The Rascal 600 scooter also features a variety of other electrical parts, including the ignition switch, the seat switch, and the headlight switch, in addition to these primary parts. The tiller harness and the light harness are also used to link these parts to the controller.

Color Codes

The Rascal 600 scooter’s wiring harness is color-coded to make it simpler to recognize and connect the wires. The wire colors and their respective uses are listed below:

Red: Positive (+)

Black: Negative (-)

Blue: Lights

Green: Horn

Yellow: Turn signals

It’s crucial to first detach the battery if you need to operate the Rascal 600 scooter’s electrical system. By doing this, unintentional short circuits will be avoided. Additionally, it’s crucial to carefully follow the wiring diagram to make sure that the wires are connected correctly.

[FAQs] Frequently Asked Questions and Answers

What Voltage Does a Rascal Scooter Use?

One of our most popular chargers, the 24 volt 4.0 amp on-board battery for Rascal scooters and power chairs is suitable with the Rascal 235, 245, 255, 305, 312 Turnabout, 410 PC, and 415 PC, among other Rascal models.

What Are Some Ways to Fix Issues With My Rascal 600 Scooter?

The owner’s manual contains troubleshooting instructions that you should consult first if you are experiencing issues with your Rascal 600 scooter. You can ask the manufacturer for help if you’re still having trouble fixing it.

What Rascal 600 Scooter Modifications Are Most Frequently Made by Users?

Rascal 600 scooters are frequently modified by owners, with common additions including a cargo carrier, a windscreen, and lights. To increase performance, some people may change the suspension or engine.

Conclusion

A versatile mobility scooter that is dependable and reasonably priced is the Rascal 600. You can better understand how the electrical parts of the Rascal 600 scooter are connected by using the wiring diagram. When repairing the scooter’s electrical system or troubleshooting scooter issues, this information can be useful.
