How to Drive a Ground Rod in Rocky Soil [Step-by-Step Guide]

Electrical grounding, which silently shields us from potentially fatal shocks and keeps our equipment functioning correctly, is the unsung hero of our contemporary world. However, This essential safety step can easily become a difficult task when trying to make a solid ground connection in rocky terrain.

Start by prepping the area and soaking the ground to soften it before attempting to drive a ground rod into the rocky soil. then take the subsequent actions in accordance.  This article will be your go-to resource whether you’re installing a new electrical system or need to upgrade an old one.

Steps of Driving a Ground Rod in Rocky Soil

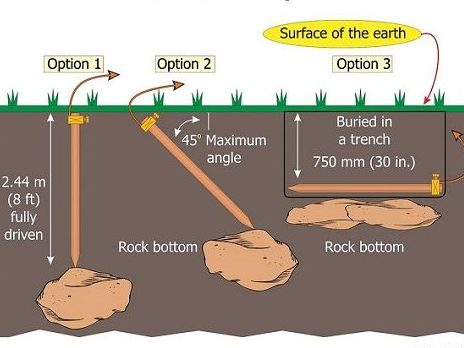

Fig. 1: Ways of driving a ground rod in rocky soil

A ground rod (copper or galvanized steel, normally 8–10 feet long), a sledgehammer or heavy maul, a ground rod driver, or a piece of pipe that fits over the ground rod (optional but advised), as well as safety equipment, may be required for driving a ground rod in rocky soil. Here are the steps.

Step 1: Select the Location

Locate the ground rod in a good spot, ideally close to the electrical panel or the equipment you need to ground. It must be at least 2 to 6 feet away from any subsurface facilities, such as electrical cables.

A metal detector can assist you in locating any buried utilities. Make sure you are adhering to the grounding criteria specified by your local building laws and regulations.

Step 2: Prepare the Area

The space surrounding the ground rod should be cleared. Take out any pebbles, rubbish, or other obstructions that can make driving more difficult.

Step 3: Wet the Ground

To soften the soil, water the area close to the ground rod. As a result, there will be less resistance and it will be simpler to push the rod into the earth. Give the water time to absorb.

Step 4: Drive the Ground Rod

The main process starts from here. Here’s how to penetrate rocky soil using the ground rod given below.

Start with a Pilot Hole

Make a pilot hole using a big metal drill bit or a specialized ground rod driver. The ground rod should have a diameter somewhat larger than the pilot hole. Remove soil and rock fragments as you drill as deep as you can.

Connect the Driver and the Ground Rod

Attach it firmly if you have a ground rod driver or a piece of pipe that fits over the ground rod. This will assist in preventing damage to the rod’s top during insertion.

Begin Driving

In the pilot hole, place the ground rod vertically. Strike the rod’s top with a hefty maul or sledgehammer. Drive the rod into the ground as straight as possible. Continue to strike the rod with hard, controlled strokes while being patient.

Rotate the Rod

If you run into a really difficult rock or obstruction, try gently twisting the rod as you drive it. This might make it easier for it to navigate obstacles.

Drive Until the Proper Depth

The required depth is often 8 to 10 feet, so keep driving the ground rod until it reaches that point. A strong electrical connection to the earth is ensured by this depth. For detailed depth requirements, consult your local electrical code. Make sure the ground rod is at least 12 inches below the ground’s surface if you are burying it horizontally.

Step 5: Test the Ground Connection

After installing the ground rod, use an ohmmeter or ground resistance tester to check the ground connection. Verify that the resistance to the ground complies with your area’s electrical regulations.

Step 6: Securing the Ground Wire

Using an authorized ground rod clamp or connector, firmly fasten the ground wire to the ground rod. This wire, which should be the proper gauge for your electrical system, should be run to the grounding electrical panel or piece of equipment.

Step 7: Backfill and Restore the Area

Backfill the hole and restore the area by compacting the earth around the ground rod. Restore the area to its original state while marking the ground rod’s location for future use.

People Also Asked

What Should I Do if I Drive the Ground Rod Into a Big Rock?

Try to drive the rod around a big obstruction, such as a large rock, by gently twisting it while exerting downward force. If this is challenging, think about moving the ground rod.

Can I Save Time and Effort by Using a Smaller Ground Rod in Rocky Soil?

It’s not a good idea to skimp on the ground rod’s size. A shorter rod might not provide a strong ground connection, thereby putting safety at risk.

How Can I Determine Whether the Ground Connection Is Successful After Installing the Rod?

To determine the resistance to ground, use an ohmmeter or a ground resistance tester. Make sure the resistance complies with your area’s electrical code.

Conclusion

Although driving a ground rod through rocky terrain might be difficult, it is an essential step in guaranteeing electrical safety and system effectiveness. You may confidently overcome the challenges presented by rocky terrain and create a safe and reliable electrical ground connection by adhering to the suggested methods and best practices described in this article.
