# How to Design an Inductor | Step-by-Step Process

When creating an inductor, the physical characteristics like turns, diameter, and wire gauge are calculated depending on the design requirements, the core material, and other factors.

The inductor’s electrical properties, including inductance, resonant frequency, and Q factor, are identified. Size, cost, and manufacturability are practical considerations. The design is then assessed and adjusted as necessary.

To produce an efficient and dependable inductor, a technique that integrates theoretical calculations, material selection, and practical factors is used.

## What Does Inductors Design Require?

The following components are necessary for inductor design:

### 1. Understanding of Electromagnetic Theory

Knowledge of the electromagnetic theory This is crucial since the operation of an inductor is dependent on electromagnetic principles.

### 2. Specification of Design Requirements

Specifications must be made for variables such as desired inductance, current capacity, operating frequency range, DC resistance, and others.

### 3. Selection of Core Material

The performance of the inductor is greatly impacted by the choice of core material. The substance might range from air to iron powder and ferrites.

### 4. Determination of Physical Dimensions

In order to do this, you must choose the coil’s diameter, wire gauge, and turn count.

### 5. Computation of Electrical Properties

It’s crucial to figure out inductance, resonance frequency, Q factor, and power handling capacity.

### 6. Testing and Refinement

The inductor should be tested under realistic working circumstances after it has been developed, and any necessary adjustments should be made iteratively.

Remember that depending on the particular use the inductor is designed for, every design necessitates a trade-off between these needs.

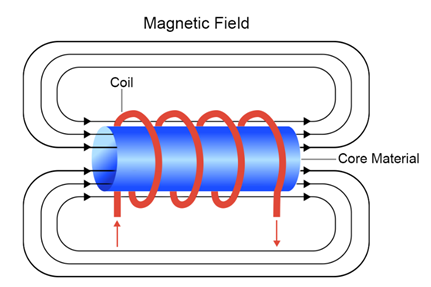

Figure 1: Inductor Parameters

## How Do You Design an Inductor?

In order to attain the appropriate electrical performance and physical features, an inductor must go through a number of design phases. Here is a step-by-step guide on how to create an inductor:

### Step 1: Define Design Requirements

Start by specifying the design specifications in detail, including the operational frequency range, maximum current, required inductance (L), and any other pertinent factors for your application.

### Step 2: Select Core Material

Based on elements such as the needed inductance, desired energy storage capacity, and frequency range, pick a suitable core material. Air, ferrites, or iron powder are examples of core materials that each have unique characteristics.

### Step 3: Determine Physical Dimensions

Based on the selected core material and the necessary electrical properties, determine the inductor’s physical dimensions. Calculate the coil’s diameter (D), number of turns (N), and wire gauge (AWG).

### Step 4: Calculate Inductance

Calculate the inductance (L) of the inductor using the physical dimensions and core material characteristics that have been established. **L = (N**^{2}** ****µ₀ ****µᵣ ****A) / l**, where 0 is the permeability of free space, r is the relative permeability of the core material, A is the cross-sectional area of the core, and l is the length of the core, may be used to calculate inductance.

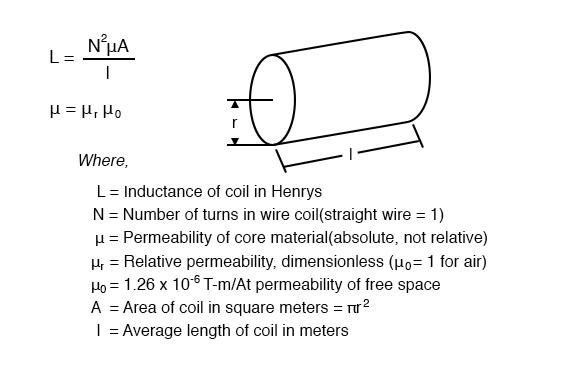

Figure 2: Inductor Formula

### Step 5: Estimate Parasitic Capacitance

Take into account any inductor parasitic capacitance (Cp) caused by coil windings or inter-turn capacitance. The resonant frequency and overall performance may be impacted by this capacitance. Based on the coil’s shape and manufacture, an estimate may be made.

### Step 6: Evaluate Q Factor

Calculate the quality factor (Q) of the inductor, which indicates the energy storage efficiency and the amount of energy loss. Q can be determined using the formula **Q = ωL / R**, where ω is the angular frequency and R is the total series resistance of the inductor.

### Step 7: Validate Design and Iterate

By modeling or prototyping the inductor and evaluating its electrical properties, such as inductance, resonant frequency, and Q factor, you can make sure the design adheres to specifications. Iterate on the design as necessary to make it more effective.

### Step 8: Finalize Physical Design

Create the final physical design of the inductor based on the verified design, taking into account issues like size, cost, manufacturability, and thermal concerns.

### Step 9: Fabrication and Testing

Make the inductor according to the approved design. To confirm that the created inductor satisfies the required specifications and electrical performance requirements, test it.

These procedures will help you create an inductor that is customized for your particular application, integrating mathematical calculations with real-world factors to provide the best results.

### Can I Modify the Inductance of an Already Constructed Inductor?

A manufactured inductor’s inductance can be somewhat altered by altering the coil’s number of turns or by adding extra magnetic materials, but large alterations may need redesigning and rebuilding the inductor.

## Conclusion

The core material, physical dimensions, electrical characteristics, and practical limitations must all be taken into account while designing an inductor. For particular applications, it is a process of iterative computation, validation, and refining to attain the best performance and functionality.
