Flashlight Taser Wiring Diagram: A Guide to Unleashing the Power
In today’s world, personal safety is of utmost importance. As technology continues to advance, innovative gadgets have emerged to provide individuals with an added layer of protection.
One such device is the flashlight taser, a versatile tool that combines the functionality of a flashlight with the stunning power of a taser. In this article, we will delve into the inner workings of a flashlight taser and explore the wiring diagram that brings it to life.
Understanding the Flashlight Taser
A flashlight taser, also known as a stun flashlight or electroshock flashlight, is a self-defense tool that combines the functions of a regular flashlight with an embedded taser. It serves two purposes: illuminating dark areas and delivering a non-lethal electric shock upon contact with an assailant. This dual functionality makes it an ideal tool for individuals seeking personal protection.
Components of a Flashlight Taser
To comprehend the wiring diagram of a flashlight taser, it is essential to understand its key components. The primary parts include:
- Flashlight Housing: The outer casing of the device that houses the electrical components.
- LED Flashlight: The flashlight element is relatively straightforward in its design. It involves a power source, usually comprising one or more batteries, wired to the LED bulb through a switch. When the switch is activated, completing the circuit, the LED bulb illuminates.
- Battery: Typically, a rechargeable lithium-ion battery powers the flashlight and taser functions.
- Taser Mechanism: The taser component is more complex and involves high-voltage generation for the electric shock. It consists of a high-voltage generator powered by a separate set of batteries or a rechargeable internal power source. The generator charges capacitors to a high voltage, which is then discharged through probes or electrodes upon activation.
- Switch: The switch is responsible for activating the flashlight and engaging the taser function.
- Electrode Probes: Located at the front end of the flashlight, the electrode probes deliver the electric shock upon contact.

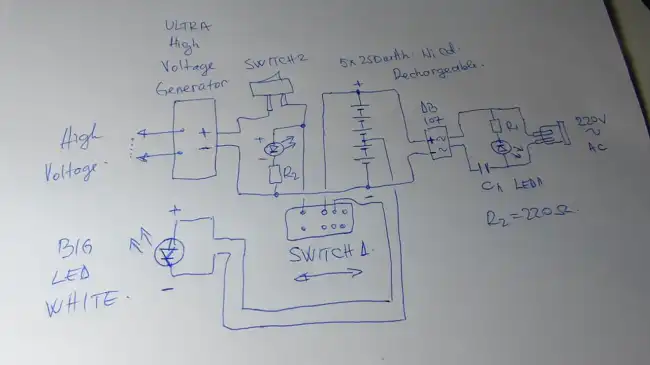

Flashlight Taser Wiring Diagram
The wiring diagram of a flashlight taser can vary depending on the manufacturer and model. However, the basic principle remains the same. Here is a simplified breakdown of the wiring diagram:
- Positive Battery Terminal: The positive terminal of the battery connects to the positive side of the taser circuit.
- Negative Battery Terminal: The negative terminal of the battery connects to the negative side of the taser circuit.
- LED Bulb Connection: The LED bulb is connected to the taser circuit, allowing it to receive power when the flashlight is activated.
- Switch Integration: The switch is connected to the taser circuit and controls the activation of both the flashlight and taser function.
- Electrode Probes: The electrode probes are connected to the taser circuit, ensuring the safe delivery of the electric shock upon contact.
Safety Measures
Safety is paramount in designing such devices. Proper insulation and isolation of the high-voltage taser components from the flashlight circuitry are crucial to prevent accidental discharge or electrical hazards.
Switching Mechanism
The wiring diagram includes a mechanism to switch between flashlight and taser modes. This switch might be a multi-position switch or separate switches for each functionality, ensuring that users can easily toggle between modes without any risk.
FAQs – Frequently Asked Questions and Answers
Can I build my own flashlight taser using the wiring diagram provided?
It is strongly advised against building your own flashlight taser. Manufacturing and distributing stun devices without proper authorization is illegal in many jurisdictions. Additionally, tampering with electrical circuits can be dangerous and potentially harm yourself or others.
How long does the battery of a flashlight taser typically last?
The battery life of a flashlight taser can vary depending on factors such as usage, battery capacity, and the specific model. It is recommended to refer to the manufacturer’s instructions for the estimated battery life and proper maintenance of the device.
Are flashlight tasers legal to possess and use everywhere?
The legality of flashlight tasers varies across different jurisdictions. It is important to research and familiarize yourself with local laws and regulations regarding the possession and use of such devices. Always ensure compliance with applicable laws to avoid any legal repercussions.
To Conclude
The flashlight taser is a remarkable self-defense tool that combines the practicality of a flashlight with the power of a taser. By understanding the wiring diagram and the components involved, users can gain insight into how this versatile device operates. Remember, personal safety is paramount, and the flashlight taser offers an innovative solution for those seeking an added layer of protection in their daily lives. Stay informed, stay safe!
