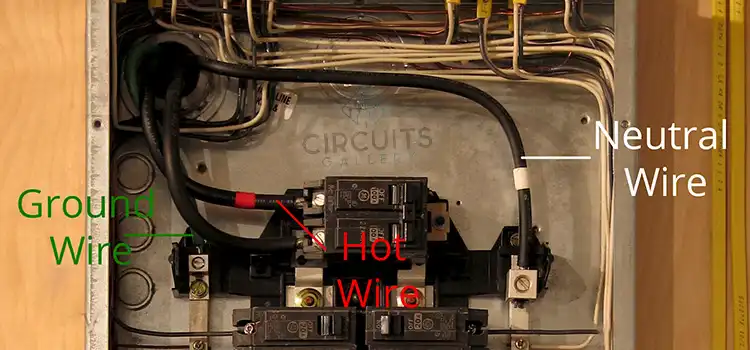

Do Neutral and Ground Go to the Same Bus | Complying or Contrasting
Yes, at the service entrance panel where electricity enters a building, the neutral and ground wires are connected to the same bus bar for safety reasons. This bonding ensures a direct path to the ground for fault currents.
However, once past the service entrance, in branch circuits, the neutral and ground are kept separate to maintain safety and prevent unwanted currents. The following is going to bring more out of it.
Distinction: Neutral vs Ground Wire | Return Path Vs Hazard Sheild
The neutral wire serves as the return path for electrical current, completing the circuit between the power source and the electrical device. It carries the current back to the source, allowing the circuit to function properly.
The ground wire, also known as the grounding conductor, acts as a protective shield against electrical hazards. It provides a low-resistance path for fault currents to flow away from the electrical system, preventing them from energizing exposed metal parts or appliances.
- The neutral wire is typically connected to the ground wire at the service entrance panel, the point where electricity enters a building.
- This grounding mechanism safeguards individuals from potential electrical shocks and prevents fire hazards.
The Neutral-Ground Bond: A Crucial Connection at the Service Entrance
At the service entrance panel, the neutral and ground wires are intentionally bonded together. This bonding serves two primary purposes:
Voltage Stabilization
It stabilizes the voltage on the neutral wire, ensuring that it remains close to the earth’s potential. This prevents voltage fluctuations that could damage sensitive electronic devices.
Fault Current Safety
It facilitates the safe dissipation of fault currents, ensuring that they are directed away from the electrical system and into the grounding electrode, typically a buried rod or plate.
Neutral and Ground Separation in Subpanels: Ensuring Circuit Integrity
In subpanels, which are smaller distribution panels located throughout a building, the neutral and ground wires are not bonded together. This separation prevents circulating currents from flowing between the neutral and ground wires, which can lead to voltage drops and incorrect operation of circuit breakers.
Common Misconceptions Regarding Neutral and Ground Wires
The common misconceptions regarding neutral and ground wires are given below:
Neutral Wire as a Grounding Conductor
Neutral wire is not a substitute for a grounding conductor. It primarily carries current, while the grounding wire provides a safety path for fault currents.
Grounding Wires as Current Carriers
Grounding wires are not intended to carry current under normal operating conditions. They are solely designed to provide a safe path for fault currents.
Safety Precautions when Working with Neutral-Ground Wires
The safety measures that you need to take while working with neutral and ground wires are:
Seek Professional Assistance
Electrical work should be handled by qualified electricians to ensure proper installation and adherence to safety standards.
Identify Wires Properly
Always use a voltage tester to confirm the identity of neutral and ground wires before proceeding with any electrical work.
Maintain Proper Insulation
Ensure that neutral and ground wires are properly insulated to prevent accidental contact and potential hazards.
FAQs- Frequently Asked Questions and Answers
Can the neutral and ground be bonded together in a subpanel?
In a subpanel, neutral and ground should not be bonded together. The neutral and ground should remain separate in subpanels to prevent the possibility of stray current and ensure safe electrical operation.
What are the potential dangers of bonding neutral and ground inappropriately?
Inappropriate bonding of neutral and ground can result in current flowing on unintended paths, which can lead to electrical shock hazards and increased fire risks.
Are there specific electrical code requirements regarding the separation of neutral and ground buses in different types of panels?
Yes, electrical codes such as the National Electrical Code (NEC) provide specific requirements for the separation of neutral and ground buses in different types of panels, which should be followed to ensure compliance and safety in electrical installations.
Bottom Line
In electrical panels, whether main or subpanels, the bonding of neutral and ground is a critical consideration for safety. In a subpanel, it’s essential to keep the neutral and ground separate to avoid potential hazards. Conversely, in the main electrical panel, connecting the neutral and ground to the same bus is both safe and necessary.
Inappropriately bonding neutral and ground in any panel type can lead to unintended current paths, posing electrical shock and fire risks. Adhering to specific electrical code requirements, such as those outlined in NEC, is crucial to ensure proper neutral and ground separation and overall safety in electrical installations.
