The voltage on the oscilloscope’s input is traced on the display using DC coupling, similar to a very rapid voltmeter, allowing you to witness huge transitions and, when the voltage is low or high, the trace accordingly remains low or high. Whether the voltage remains steady at zero volts or goes positive or negative, the display shows it all.

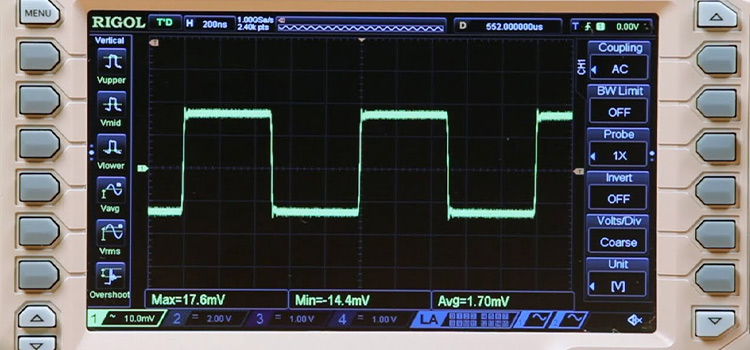

DC Coupled Oscilloscope
An oscilloscope, like a heart monitor’s line graph, shows changes in voltage in an electronic circuit over time. The dot on an oscilloscope displays how the voltage fluctuates in a circuit, just like the dot on a heart monitor goes up and down in response to a beating heart.
A coupling is a mechanism that connects two shafts at their ends for power transmission. DC coupling allows all signals to pass through without being filtered.
What Does Coupling Mean in Oscilloscope
The method of connecting an electrical signal from one circuit to another is known as coupling. The input coupling in this context refers to the connection between your test circuit and the oscilloscope. DC, AC, or ground couplings are available.
What Is the Difference Between AC Coupling and DC Coupling
The main difference between AC and DC coupling is when you set input to AC coupling, the oscilloscope displays both AC and DC signals, whereas when you select input to DC coupling, the oscilloscope shows both AC and DC signals.
AC Coupling
When the total alternating current and the direct current signal are too large for the volts/div setting, the AC coupling option comes in handy. The oscilloscope’s input features an AC coupling capacitor in the signal line, which removes DC offset from any mixed signal and allows you to view the AC part more easily.
Some transistor and vacuum-tube amplifiers, for example, have a considerable DC offset, reducing it using AC coupling aids troubleshooting. AC coupling is most useful with mixed signals, but it can also be used with pure AC signals.
DC Coupling
Among the numerous advantages of using a DC-coupled input, one is its low-frequency response is excellent, allowing both the AC and DC components of the signal to be examined.
Unless the DC offset is substantial or the filtering provided by the AC coupled input is required, the DC-coupled input should be used. A significant DC offset has the disadvantage of lowering the instrument’s resolution to unacceptable levels. DC offsets can produce clipping and saturation in extreme circumstances.
It’s worth noting that using the DC-coupled input doesn’t ensure a distortion-free signal. Other causes of distortion include a lack of device bandwidth or an impedance mismatch at the termination.
What is meant by DC coupled
DC coupled electronics have their components wired up together without any coupling capacitors in analog circuits. Since capacitors tend to block specific frequencies, connecting the circuitry without them in-line allows the entire spectrum of sound frequencies to pass through.
This is useful as most capacitors substantially restrict low-frequency passing, leading to poor low-frequency responsiveness. DC-coupled equipment retains a linear phase connection across all channels, demonstrating yet another benefit of this circuit-building process.
What Is DC Coupling in Oscilloscope
In contrast to inductive and capacitive coupling, direct coupling or DC coupling which is also known as conductive coupling and galvanic coupling is the transmission of electrical energy via physical contact across a conductive medium. Both AC and DC signals can travel through a DC coupling connection.
The DC component is a 0 Hz signal that serves as an offset for the signal’s AC component to fluctuate around. The DC coupling setting allows all forms of signals into the scope, including unchanging DC voltages, time-varying DC voltages, AC, and AC/DC combinations.
In this scenario, technicians refer to the signal as an AC signal with a DC offset. DC offsets can be inconvenient at times as the overall signal voltage may drive the signal past the top or bottom of the screen, obscuring the parts you wish to see. In most other situations, however, DC coupling is sufficient.
How to DC Couple in Oscilloscope
If you look closely at the oscilloscope, the coupling setting will be found in the individual channel menus and shown at the bottom of the screen for each channel at all times. In this mode, the scope displays both ac and dc of the signal together.
This is ideal for correct voltage measurements of your signal but when the signal of interest is far from the ground, it can be time-consuming to locate them on the scope. The engineer would have to set both the reference values and the trigger level to locate the offset signal.
Furthermore, all scopes have some limit to how much offset they can provide. To make this easier we can use AC coupling. But if the signal is close to the ground, just choose the DC coupling from the display by pressing the defined button for it and get a full-form signal.
Last Words
On an oscilloscope, DC or AC coupling allows the technician or engineer to focus on a specific part of the signal. DC couples the complete signal, including steady positive or negative voltages to the display.
