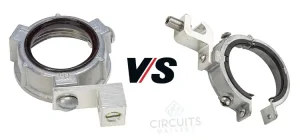

Bonding Bushing vs Grounding Bushing
Bonding, and grounding serve important roles in ensuring safety and preventing potential hazards.
Bonding establishes a low-impedance path between non-current-carrying metal parts while grounding connects these parts to the earth to dissipate fault currents and prevent electrical shock.
This exploration aims to provide a comprehensive understanding of bonding and grounding, highlighting their collective contribution to the preservation of electrical safety in diverse settings. So, let’s get started.
Definition of Bonding and Grounding
Bonding aims to electrically connect all exposed metal surfaces within an electrical system to create a common potential reference. This ensures that any fault current that may arise is safely channeled away, preventing it from energizing non-current-carrying metal parts and posing a shock hazard.
Figure 1: Bonding Bushing
Grounding, on the other hand, establishes a conductive path between the electrical system and the earth. This path allows fault currents to flow safely into the earth, dissipating them harmlessly and preventing electrical shock. Grounding also helps protect electronic equipment from damage caused by overvoltage surges.
Figure 2: Grounding Bushing
Bonding Bushings: Purpose and Application
Bonding bushings are specifically designed to secure a reliable electrical connection between a non-current-carrying metal enclosure and a grounding conductor. They are typically used in conjunction with electrical conduit systems to ensure proper bonding between the conduit and the enclosure.
Bonding bushings play a critical role in ensuring electrical safety, particularly in applications where non-current-carrying metal enclosures are present. They are commonly used in industrial settings, commercial buildings, and residential installations.
Grounding Bushings: Purpose and Application
Grounding bushings, also known as grounding locknuts, serve the primary purpose of providing a secure grounding connection between a threaded metal conduit and a grounding conductor. They are typically used at the point where the conduit enters an electrical box or enclosure.
Grounding bushings ensure a low-impedance path for fault currents to flow from the conduit to the grounding conductor and eventually to the earth. They are essential for maintaining electrical safety and preventing shock hazards.
Key Differences between Bonding and Grounding Bushings
Feature | Bonding Bushing | Grounding Bushing |
Purpose | Bonds non-current-carrying metal enclosures to the grounding conductor | Connects threaded metal conduits to the grounding conductor |
Application | Used in conjunction with electrical conduit systems | Typically used at the point where the conduit enters an electrical box or enclosure |
Function | Creates a common potential reference for non-current-carrying metal parts | Provides a low-impedance path for fault currents to flow to the earth |
Connection | Bonds metal enclosures directly to the grounding conductor | Connects the conduit to the grounding conductor, which then connects to the earth |
Installation | Typically installed at the point where the conduit enters an electrical box or enclosure | Can be installed at various points along the conduit run |
Maintenance | Regular inspection for damage or loose connections | Regular inspection for damage or loose connections |
Safety | Prevents electrical shock by ensuring that non-current-carrying metal parts do not become energized in the event of a fault | Provides a safe pathway for fault currents to dissipate harmlessly into the earth, preventing electrical shock and protecting electronic equipment from damage |
Regulations | Mandated by electrical codes and standards | Mandated by electrical codes and standards |
Choosing the Right Bushing for the Application
Selecting the appropriate bushing type depends on the specific application and the electrical system’s requirements:
- Bonding bushings are typically used in situations where a non-current-carrying metal enclosure needs to be bonded to the grounding conductor
- Grounding bushings are commonly employed at the point where a threaded metal conduit enters an electrical box or enclosure, providing a grounding connection for the conduit.
Importance of Bonding and Grounding
Bonding and grounding play critical roles in electrical safety:
- Bonding helps prevent electrical shock by ensuring that non-current-carrying metal parts do not become energized in the event of a fault.
- Grounding provides a safe pathway for fault currents to dissipate harmlessly into the earth, preventing electrical shock and protecting electronic equipment from damage.
The Sum Up
In summary, bonding and grounding are integral components of electrical safety, collectively working to prevent electrical shock, dissipate fault currents, and safeguard against potential dangers in diverse electrical environments. Adhering to electrical codes and standards, along with careful consideration of the application’s requirements, ensures the selection and implementation of the right bushing for the task at hand.
