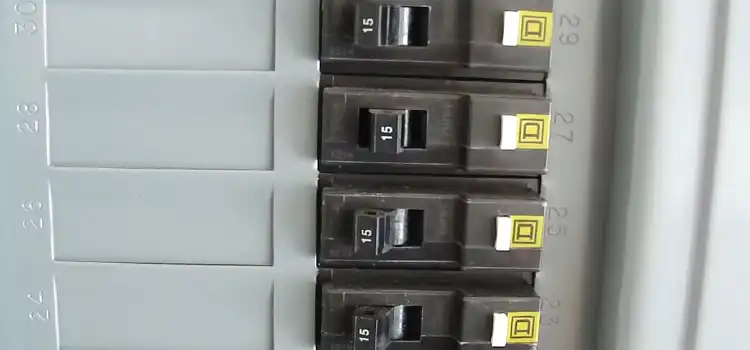

Arc Fault Breaker Won’t Reset | A Comprehensive Guide
Arc Fault Breaker or Arc Fault Breaker Circuit Interrupter (AFCI) breaker is a protective device installed in electrical panels that monitors circuits for dangerous electrical arcs that could overheat wires and start fires. There are a few reasons why an Arc Fault Breaker might not reset.
In this comprehensive guide, we will take a deeper look into common resetting issues and how to resolve them.
Common Arc Fault Breaker Resetting Issues
There are several reasons an AFCI breaker may fail to reset after it trips, including:
Faulty Appliance or Device
If an appliance like a vacuum, power tool, or treadmill has a visibly damaged, cracked, or melted power cord, this can allow electricity to arc in unintended paths. Additionally, corroded or loose plugs and internal wiring in appliances can cause hazardous arcing.
Methodically unplug all devices on the AFCI circuit one at a time, resetting the breaker each time, until the breaker resets and stays on normally. This identifies the faulty appliance, which then must be replaced.
Loose, Exposed, and Damaged Wiring
Loose wire connections in junction boxes, outlets, and switches due to vibrations, aging, or improper initial installation can spark. Check for any loose, freely moving wires in all accessible connections on the circuit. Furthermore, damaged wiring insulation from pests, physical impacts, heat exposure, or long-term cracking may have live conductors improperly exposed.
Exposed wires electrifying metal junction boxes are extremely hazardous. Carefully inspect for punctures, tears, melting damage, or thinning insulation on wiring. Notify an electrician immediately if any hazardous wiring faults are discovered, as this presents serious fire risks.
Overloaded Circuit from Excessive Appliances
Connecting too many high-wattage appliances like vacuum cleaners, power tools, air conditioners, space heaters, and ovens on a single circuit forces too much current through the wires, overheating them past safe limits. This strains all connections, potentially loosening wires and deteriorating insulation over time, leading to arcing hazards.
Take note of every appliance plugged into outlets on the circuit and sum their wattages. If the total exceeds 80% of your circuit breaker amperage, excessive overload is likely tripping the AFCI through overheated wires and connections. Spread out usage of hair dryers, vacuum cleaners, and power tools onto different circuits with free capacity.
Moisture and Rust Corroding Connections
Moisture contacting wires from leaks or condensation can create shorts between conductors. Furthermore, rust corrosion on screw terminals and in metal junction boxes builds resistance that results in overheating. Both wet electrical components and corroded connections force excess current resulting in arcing shorts.
Search for any water intrusion or leaks contacting electrical hardware. Inspect junction boxes for rust buildup or darkened, overheated screws on outlets and switches. Repair moisture damage, replace rusted components, and eliminate sources allowing water to contact the circuit’s wiring and hardware.
Broken Internals within AFCI Breaker
If meticulously checking all appliances, devices, and wiring does not reveal an arcing hazard yet the AFCI breaker refuses normal reset, the breaker itself may have broken internal components preventing reset. AFCIs contain sophisticated sensing, analysis, and switching systems that degrade over years of tripping circuits during hazardous electrical events.
When interior control boards, sensors, or switches malfunction, the AFCI may be prevented from resetting even when no arc currently exists. Only an electrician has the specialized tools and experience to verify a suspected failed AFCI needs replacement.
Some Approaches to Arc Fault Breaker Resetting
This section provides practical steps to troubleshoot and remedy electrical problems, emphasising the importance of safety and professional assistance when needed.
Checking for Faulty Wiring & Devices
To check for wiring issues and faulty devices:
- Unplug all devices and reset
- Plug-in devices one by one, resetting each time until trip
- Check cords and connections of the problem device
- Call an electrician if no device issue is found
Damaged appliance cords, loose wiring, or moisture on wires could be tripping breakers.
Locating Your Home’s Electrical Panel
To find the home electrical service panel with circuit breakers:
- Check the basement near the furnace & and water heater
- Check the garage, often near the entry door
- Maybe a closet or utility room
- Look for a metal gray box with flip switches
Familiarize yourself with the panel to quickly address electrical issues.
Disconnecting Appliances from Overloaded Circuits
To reduce overload on a circuit:
- Balance high-wattage appliances across circuits
- Switch some appliances to a different circuit
- Unplug unused items from overloaded circuit
- Avoid using multiple high-draw appliances at once
This prevents hazardous electricity overloads.
Updating Overloaded Electrical Circuits
For overloaded electrical circuits, options include:
- Installing AFCI breakers to monitor overload better
- Replacing fuse panel with modern circuit breaker panel
- Adding new 120V or 240V circuits to spread demand
- Increasing service panel amperage if necessary
Consult an electrician to determine best upgrade solutions.
Signs It’s Time to Upgrade Home’s Arc Fault Breaker
If you experience frequent tripping, flickering lights, buzzing/warm outlets, or need more circuits, it may be time for electrical service upgrades like:
- New, larger capacity electrical panel
- Added 240V circuits for large appliances
- Added 120V circuits for outlets & lighting
- Installing arc fault (AFCI) or ground fault (GFCI) breakers
- Upgrading from 60 amps to 100 amps or more capacity
Schedule an evaluation by a certified electrician to explore improvement options.
Causes of Tripped GFCI Outlets Downstream from AFCI
If AFCI won’t reset and downstream outlets are dead, a ground fault (GFCI) outlet could be tripped. Causes include:
- Faulty appliance/device plugged into GFCI outlet
- Damaged supply cord making contact with the ground
- Moisture contacting the wiring of the GFCI outlet
- Normal end-of-service-life failure
Reset all GFCIs. If one won’t reset, it likely needs replacement.
Importance of AFCI & GFCI Protection in Homes
AFCI and GFCI breakers play a vital role in preventing fires and shocks:
- Detect dangerous arcs (AFCI) and ground faults (GFCI)
- Quickly cut power to the circuit when a hazard occurs
- Protect entire circuit – outlets, wires, junctions, devices
- Required by building code in bedrooms, kitchen, bathrooms
Upgrade older electrical panels to add this important protection.
FAQs – Frequently Asked Questions and Answers
- How much does it cost to replace an AFCI breaker?
Answer: Replacing an individual AFCI breaker costs $50-$100 on average. Replacing a home’s main electrical panel with AFCI protection averages $1,500-$3,000.
- What happens if the underlying problem causing the arc fault isn’t fixed?
Answer: Ignoring the root cause of the tripping can lead to serious consequences, including electrical fires, property damage, and even injury. Don’t gamble with safety – address the issue promptly.
- Is it okay to just bypass the arc fault breaker?
Answer: Absolutely not! Bypassing a safety device is like removing your castle’s moat and drawbridge – you’re leaving yourself exposed to potential fires and serious electrical hazards. Arc fault breakers are there for a reason – respect their warnings and keep them in place.
To Conclude
By understanding the most common reasons for AFCI issues, taking sensible troubleshooting steps, and calling an electrician when appropriate, you can get your electrical system back to a safe functioning order. The proper response when AFCIs indicate hazards keeps families and property protected.
