When The Current I Is Positive | A Comprehensive Guide

March 28, 2023 by Charles Clark Leave a Comment

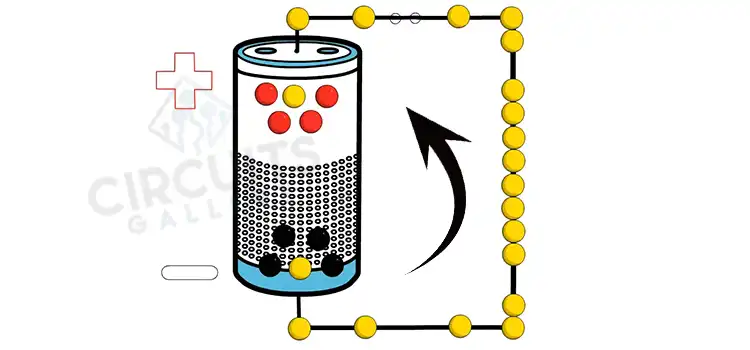

Hole flow is also known as conventional current since it runs from positive to negative. This is the positive current I. Electron flow is reversible, moving from negative to positive voltages. The fact that electrons are negative and are attracted to and flow towards the positive makes it simple to remember.

When a battery is discharged, the current in the circuit goes from the positive to the negative electrode. Ohm’s law states that current is proportional to the electric field so that current flows from a positive to a negative electric potential.

When the Current I Is Positive

Exploring the Effects of Positive Current

We already know that electrons (-ve charges) travel from a negative to a positive terminal. And current always flows from higher (+ve) potential to lower (-ve) potential, just as water flows from higher potential to lower potential (more height) (less height). As a result, current flows from positive to negative terminals.

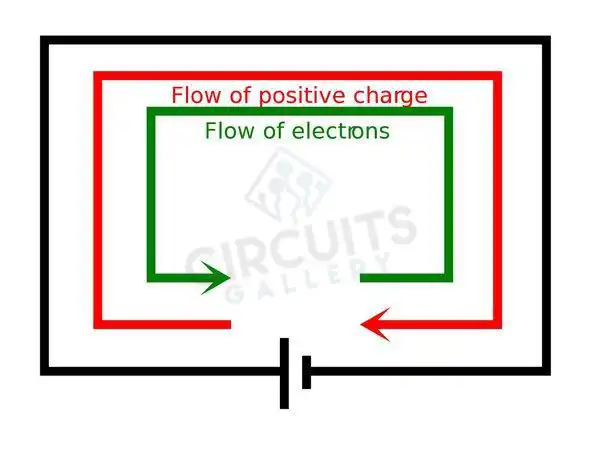

The flow of current (+ve to -ve) is the inverse of the movement of electrons (-ve charges), and the flow of current resembles the flow of positive charges. The following figure illustrates this clearly.

What Does It Mean When Current Is Positive

When current flows from a place of a greater potential voltage to a location of lower potential voltage, it is considered a positive current. The positive sign for current denotes the direction in which a positive charge would move. The current in metal wires is carried by negatively charged electrons.

The positive current arrow points in the opposite direction that the electrons move. Since Ben Franklin designated electric charges with + and – signs 270 years ago, this has been the sign convention. This convention was established approximately 150 years before the discovery of the electron.

How Do You Know if Current Is Positive or Negative

By convention, the direction of an electric current is the same as the direction of a positive charge. As a result, the current in the external circuit is diverted away from the positive terminal of the battery and toward the negative terminal. Electrons would go in the other direction through the connections.

The actual charge carriers in wires are negatively charged electrons, this practice may appear weird and out of date. Nonetheless, it is the worldwide standard and one that a physics student may quickly acquire acclimated to. The negative terminal has a lower potential, while the positive terminal has a higher potential.

Which Direction of Current Is Positive

Electrons (with their negative charge) move in the opposite direction of the positive current arrow. Hence the direction of positive current is opposite to that of the electrons of a conductor.

Ben Franklin, who undertook substantial scientific research in both static and current electricity, stated positive charges as charge carriers. As a result, an early standard for the direction of an electric current was formed. The convention endured and is still in use today.

Does Current Flow From Positive to Positive

If one of the positive terminals has less voltage than the other one, electrons tend to flow from the lower potential terminal to the higher one. So, a very little amount of current can flow between two positive terminals. In this case, the direction of current would be from the higher to the lower voltage terminal.

Electron current is the flow of electrons. Electrons pass from the negative to the positive terminal. Conventional current, sometimes known as just current, behaves as if positive charge carriers are responsible for current flow. Hence, conventional current flows from the positive to the negative terminal.

Why Is the Direction of Current Defined as the Flow of Positive Charge

Electrons had not yet been discovered when it was defined. Positive charges were thought to flow from the positive terminal to the negative terminal. When electrons were found, it was determined that they had the opposite charge of what was considered positive. But the convention remained since it was so widely accepted.

This explains why electrons travel in the opposite direction of the ordinary current. Holes flow in the direction of current in semiconductors where they are positive charge carriers. Positive ions in the solution also follow the typical current direction.

Frequently Asked Questions

What happens when current flows in a conductor?

One amp equals 6.24 x 10^18 electrons per second. Heat is produced when current travels through a conductor. This occurs because every conductor provides some resistance to the flow of electricity. That is why the amperage flow in a circuit is critical, because the more amps that flow, the more heat is produced.

Conclusion

For most practical purposes, you can ignore the current direction and focus on the voltage as a polarized potential. The calculation will become more productive and less confusing doing so, as the current is a continuous flow. However, positive and negative charges exist in both conductors and insulators.
