How Is Energy Passed in a Parallel Circuit? | Exploring the Fundamentals

July 3, 2023 by Charles Clark Leave a Comment

In a parallel circuit, energy flows along multiple paths simultaneously. The current divides among the branches, with separate loads or devices, each carrying a portion of the total current. However, the voltage across each branch remains the same, and the currents merge to form the total current.

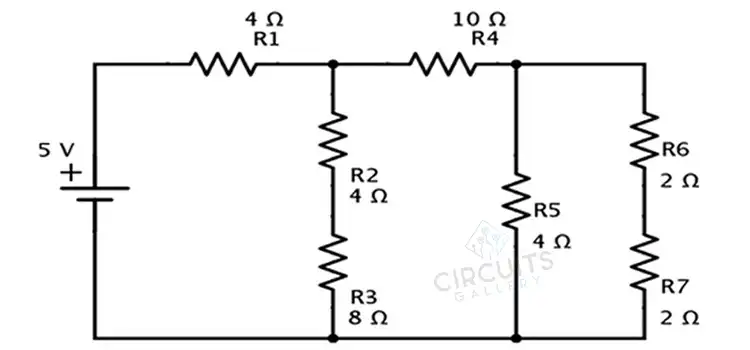

How Is Energy Passed in a Parallel Circuit

Energy Flow in a Parallel Circuit

To understand the concept of energy flow in a parallel circuit, a basic understanding of voltage/current division, equivalent resistance, and other concepts is necessary.

1. The Voltage Across Components

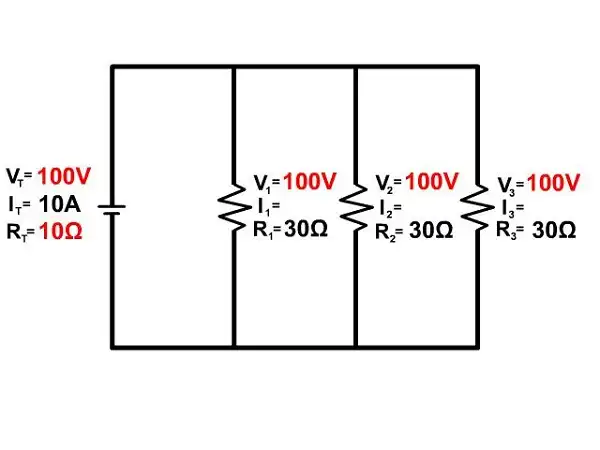

Figure: Voltage across parallel components

The voltage across each node is equal in a parallel circuit. This means that regardless of the number of components present, they all receive the same voltage as the power source. The constant voltage ensures that each component can operate independently, allowing for greater flexibility in circuit design.

2. Division of Current

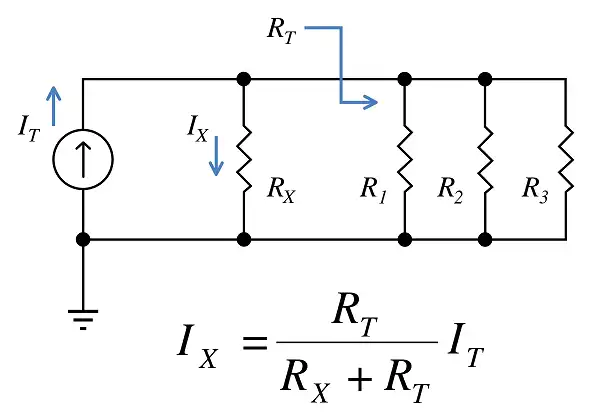

Figure: Division of Current

One of the defining characteristics of a parallel circuit is the division of current. When the current reaches a junction point, it splits into separate paths, with each component receiving a fraction of the total current. This division occurs because the components provide multiple pathways for the current to flow.

3. Independent Operation

In a parallel circuit, each component functions independently. This means that if one component fails, the others will continue to receive the same voltage and operate normally.

This aspect is particularly advantageous in scenarios where reliability is crucial, as it prevents a single faulty component from dysfunctioning the entire circuit.

4. Equivalent Resistance

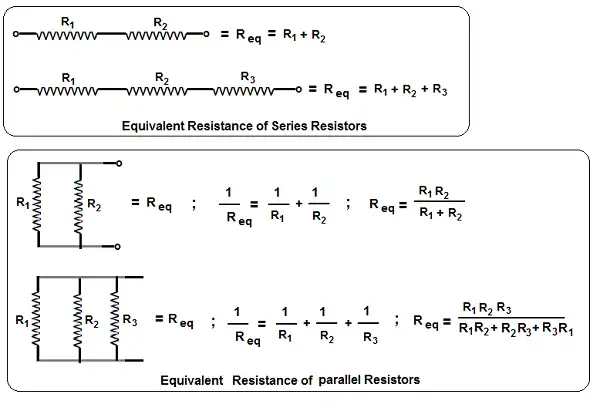

Figure: Equivalent Resistance

The total resistance decreases as more components are added to a parallel circuit. The inverse relationship between resistance and current implies that the total current increases with the addition of components.

In a parallel circuit, the total resistance can be calculated using the formula:

1/Rt = 1/R₁ + 1/R₂ + 1/R₃ + … + 1/Rn, where R₁, R₂, R₃, …, and Rn represent the individual resistances of each component. Consequently, more current is available to each component, enhancing individual performance.

Calculating Current and Power

To determine the current flowing through each component in a parallel circuit, Ohm’s law can be applied individually to each branch. Using Ohm’s law (I = V/R), where I represents current, V stands for voltage, and R denotes resistance, the current through each branch can be calculated.

The total current flowing through a parallel circuit can be determined using Ohm’s Law: It = I₁ + I₂ + I₃ + … + In. Where I₁, I₂, I₃, …, In denote the currents passing through each component. Similarly, the power dissipated by each component can be calculated using the formula P = IV, where P represents power, I denotes current, and V stands for voltage.

The power dissipated across each resistor can be calculated using the formula: P = (I₁² * R₁) = (I₂² * R₂) = (I₃² * R₃). By calculating the power for each component, one can understand how energy is distributed and utilized within the parallel circuit.

How Does Energy Conservation Apply to Parallel Circuits?

For parallel circuits, the total power supplied by the voltage source is equal to the sum of the power dissipated across each component. This principle ensures that the total energy entering the circuit is distributed among the components, accounting for any losses due to resistive elements.

To Conclude

In conclusion, a parallel circuit facilitates the efficient flow of energy by providing multiple pathways for electric current. Through the consistent voltage across components, the division of current, and independent operation, parallel circuits offer numerous advantages in electrical systems.
