Electrical Outlets Not Working but Breaker Not Tripped

May 13, 2022 by Charles Clark Leave a Comment

If your outlet stopped working but the breaker did not trip, there is an underlying problem to address. The issue can be poor wiring, too many connections to a single circuit, or a faulty breaker. Checking the wiring and then resetting the breaker is the best technique for resolving issues. If it’s a short circuit, you need to call an expert.

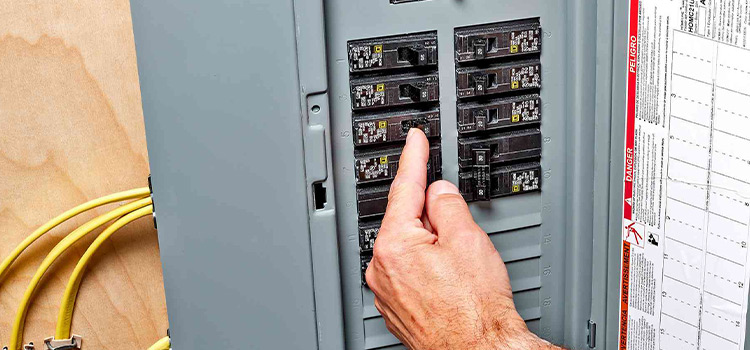

Electrical Outlets Not Working but Breaker Not Tripped

Electrical Outlets Not Working but Breaker Not Tripped

Whenever an outlet stops working, you naturally believe the circuit breaker has tripped. This isn’t always the case, and there may be an underlying factor that needs to be resolved before the circuit can be restored.

People frequently report that their outlet has ceased working even though the breaker has not tripped. Damaged outlets can indicate a problem with your entire electrical system. It isn’t a serious problem almost all of the time.

However, if you notice that several outlets in your home have suddenly ceased working, this can be a concern. You must check the circuit breaker as well as the connections if your outlets stop working.

Loose Connection

The biggest source of concern will be a shaky connection. This might happen at any point throughout the route. Even though it’s the most usual location for the problem to occur, it doesn’t have to be immediately near the breaker. Examine the wiring from one end to the other to determine the source of the problem.

Particular wires that are loosened or spliced will be visible. You’ll have to change the wiring if it’s spliced. If it’s simply loose, you may immediately secure the connection by reinstalling it. It will be fine to go once you reset the breaker, and the electrical outlet will begin to work.

The wiring can become slack over time, especially if additional work has been done, weakening the connections. It’s also a good idea to check the other outlets to ensure if the connections are secure. This is good news for the circuit’s long-term viability and efficiency.

Flawed Wires

If the breaker hasn’t failed but the outlets in your home won’t turn on, you’ll need to look at the wiring. The transfer of power may be hampered if the wiring in the outlet is old or broken. Wires that have been damaged are easy to identify. Look for fire marks, ripped insulation, and buzzing noises, among other things.

Tripped GFCI

Many folks have GFCIs but have no idea how they work. A ground fault activates a ground fault circuit interrupter (GFCI). When a current deviates from its planned route, the GFCI cuts the power to the outlet by interrupting the circuit. Even if the outlet has a GFCI, it might still shock you.

Some people are aware that a GFCI protects them against electrocution by turning off the power to the outlet. They are unaware, however, that the power will remain off until the user switches it back on. To restore power, push the ‘RESET’ button back into the receptacle. If you have a GFCI and the outlet isn’t working, the GFCI has most likely tripped.

For a variety of reasons, GFCIs can trip. When you find the outlet isn’t working because the GFCI has tripped, don’t rush to turn it back on. Take a few moments to figure out why the GFCI went off. Otherwise, it may trip again, cutting off electricity to your outlet.

Dead Outlet

Outlets that are no longer operational are known as “dead outlets.” Outlets, like all other electronic components, have an expiration date. When you use an outlet, it wears out. The more you use it, the faster it will break down.

Every outlet eventually quits working. Wear and tear will continue to build up until the outlet dies entirely. If you reside in an older home with outlets that have never been updated, they are most likely nearing the end of their useful life. You can slow down the process but not stop it.

Burnt Out Receptacles

If your outlet has ever felt warm or if you’ve ever witnessed little burns and sparks inside the receptacle, it’s burned out. You’ll see a lot of black patches and burns if you uncover the outlet. Loose wiring, overloading, surges, and short circuits are some of the causes of this problem.

Half-Hot Outlets

A Half-hot outlet features a plug that the switch on the wall controls. In other terms, if you want the plug to operate, you must flip the light switch on. People who are unaware that they have a half-hot outlet are oblivious that it is regulated by both the light switch and the receptacle switch.

Wiring Issues

If you installed the outlets yourself, you almost definitely did not do so properly. When it comes to wiring outlets, even the most experienced electricians can make blunders. A layperson who is inexperienced with electricity, on the other hand, is more likely to encounter this.

Too Many Connections on a Single Circuit

When fresh work is done on the electrical circuit, this is more likely to occur. When too many connections are linked to a single circuit, mistakes might occur. This overloads the circuit, preventing various appliances and outlets from functioning.

The installation step is critical for this reason, which is why hiring a trained electrician to execute the job is critical. It makes a significant difference. Removing and rewiring the connections is the best solution for this type of issue. It is the only approach to resolve the issue.

The Breaker Must Be Reset

The only problem is that the breaker needs to be reset from time to time. Switch the breaker to the “off” position to accomplish this. After that, you’ll want to turn it back on.

If the breaker won’t reset, it could be a sign of a larger problem with your electrical system. This could be due to a ground fault or a potentially deadly short circuit. You’ll need to get a specialist to examine the circuit because it poses a risk to the property and everyone within.

Conclusion

Before handling electronics, be sure you understand all of the safety precautions. Hopefully, you now have a better understanding of the reasons behind your outlets not operating properly. If it’s due to simple wire and wiring issues, loose connection, or GFCI problems, the solution is handy. If not, you might need to pick up a few hassles and hire an expert.
